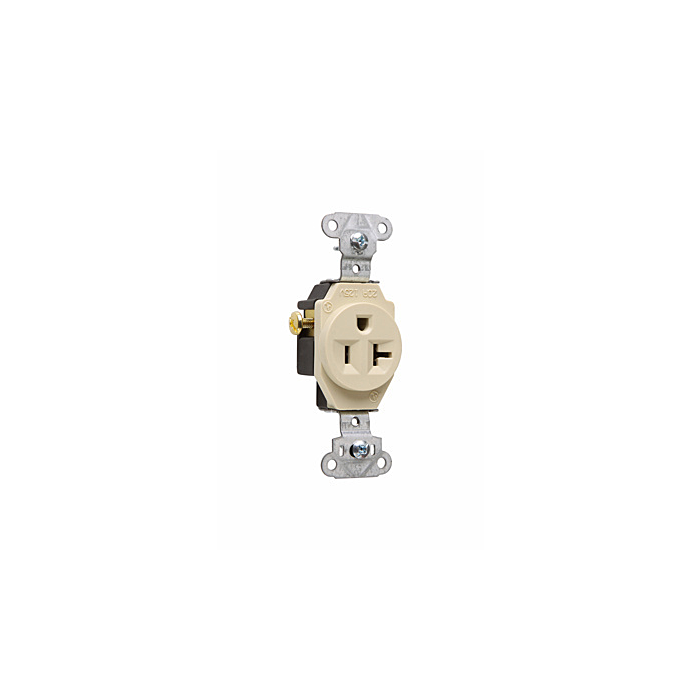

20A 125V Heavy Duty Spec-Grade Single Receptacle, Side Wire, Ivory
SKU: E5351I
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$5.99
Features
Specifications
Downloads
20A 125V Heavy Duty Spec-Grade Single Receptacle, Side Wire, Ivory
- Auto-ground clip assures positive ground.
- Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.
- One-piece brass triple-wire power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007535112 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.94" |
| Package Width (in) | 1.38" |
| Package Height (in) | 1.38" |
| Manufacturer Part Number | 5351I |
| Depth | 1.08 in |
| Color | Ivory |
| Width | 1.38 in |
| Finish | Matte |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Amperage | 20.0 A |
| Standard | UL 498 |
| Voltage | 125.0 V |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Number of Receptacles | 1.0 |
| Outlet Type | Straight Blade |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Side Only |
| NEMA Configuration Code | 5-20R |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature Min | -40.0 °C |
| Features | Heavy Duty Steel Mounting Strap |
| Operating Temperature | -40°-60°C |
