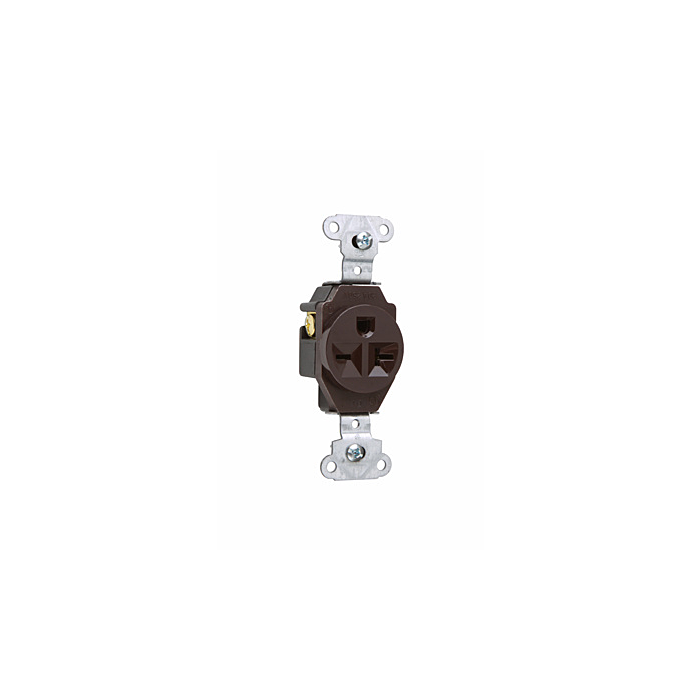

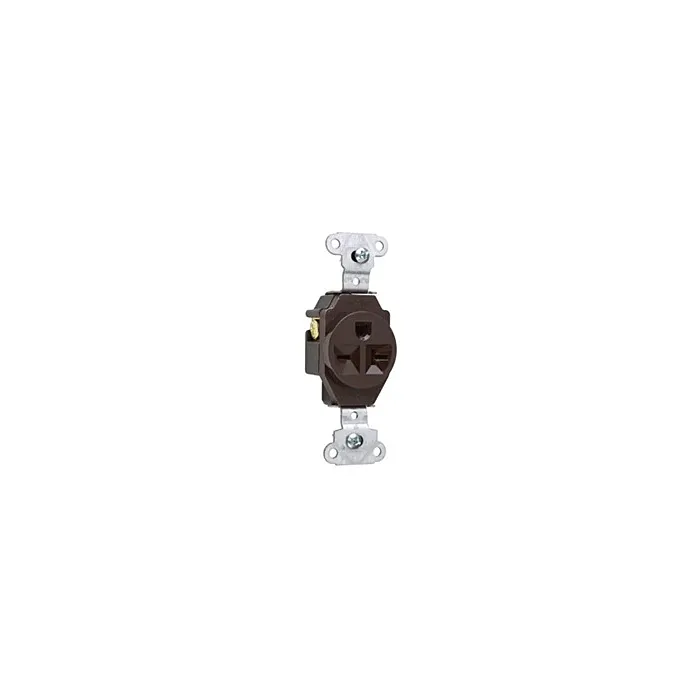

20A 250V Heavy Duty Spec-Grade Single Receptacle, Side Wire, Brown
SKU: E5851
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.79
- Buy 10 for $6.11 each and save 10%
Features
Specifications
Downloads
20A 250V Heavy Duty Spec-Grade Single Receptacle, Side Wire, Brown
- Auto-ground clip assures positive ground.
- One-piece brass, triple-wipe power contacts for lasting retention.
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
- One-piece brass triple-wire power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007585100 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.94" |
| Package Width (in) | 1.38" |
| Package Height (in) | 1.38" |
| Manufacturer Part Number | 5851CC8 |
| Depth | 1.08 in |
| Special Features | Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention. |
| Width | 1.38 in |
| Country of Origin | Mexico |
| Standard | CSA C22.2 No. 42 |
| Amperage | 20.0 A |
| Voltage | 250.0 V |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Number of Receptacles | 1.0 |
| Outlet Type | Straight Blade |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Side Only |
| NEMA Configuration Code | 6-20R |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature Min | -40.0 °C |
| Operating Temperature | -40°-60°C |
| Dielectric Strength | Withstands 2000V minimum |
| Environmental Conditions | Flammability: UL94 V2 |
| Features | Single Piece Plated Steel Mounting Strap |
| Color | Brown |
| Product Line | Pass & Seymour |
