SKU: TSHN4100 | Location: Aisle 05, Section N1
$719.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Not available for parcel delivery
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications

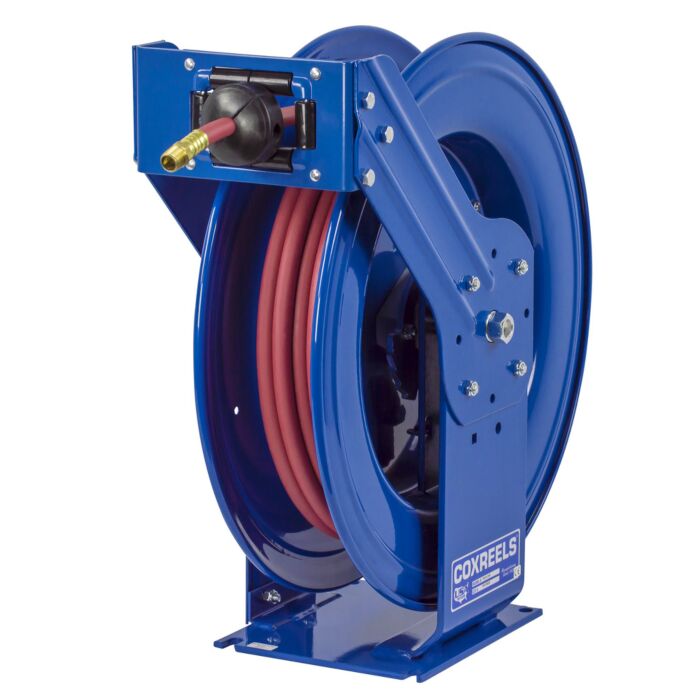

COXREELS® T Series “Truck Mount” spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels' Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.
- External fluid path with machined from solid brass 90 Deg full-flow NPT swivel inlet Zinc plated Steel swivel on HP models
- Built for rugged mobile applications
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Stainless Steel rollers on 3/4 in and 1 in models
- Solid one piece, heavy gauge 1/4 in steel base and support posts for maximum strength
- 1 in Solid steel axle and lubricated precision bearings for smooth rotation
- Enclosed factory tuned & matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
Brand | Coxreels |
---|---|
Store Location (Lititz, PA) | Aisle 05, Section N1 |
Manufacturer Part Number | TSH-N-4100 |
Type | Heavy Duty Low Pressure |
Series | T |
Hose Capacity | 100 ft |
Inner Hose Diameter | 1/2 in |
Outer Hose Diameter | 3/4 in |
Mounting Type | Truck |
Material | Steel |
Width | 9.38 in |
Height | 25.5 in |
Depth | 24 in |
Swivel Seals Material | Nitrile |
Maximum Pressure | 300 psi |
Hose Included | Yes |
Retraction | Spring Driven |
