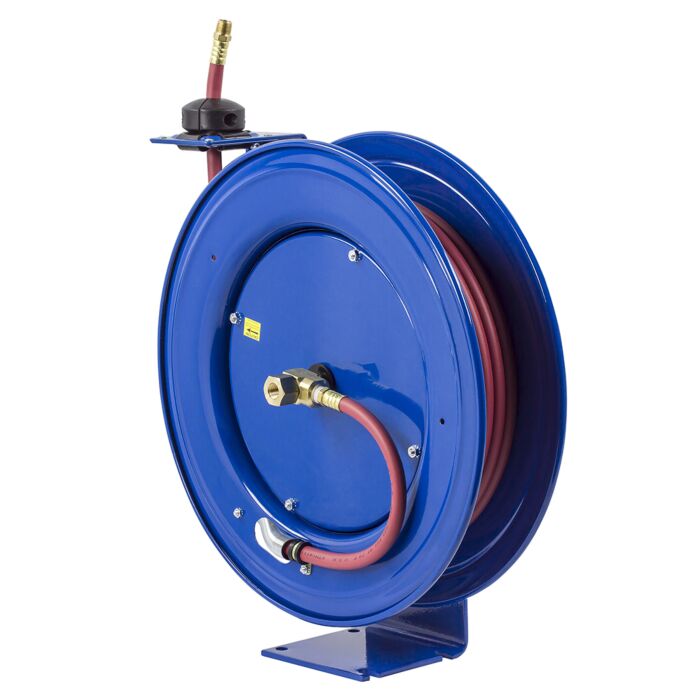

COXREELS® SH Series “Super Hub™” spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels' original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
- External fluid path with machined from solid brass 90 Deg full-flow NPT swivel inlet
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Solid one piece, heavy gauge 1/4 in steel base and support post for maximum stability
- 1 in Solid steel axle and lubricated precision bearings for smooth rotation
- Enclosed factory tuned and matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl and zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
Brand | Coxreels |
---|---|
Store Location (Lititz, PA) | Aisle 05, Section N1 |
Manufacturer Part Number | SH-N-450 |
Type | Low Pressure |
Series | SH |
Hose Capacity | 50 ft |
Inner Hose Diameter | 1/2 in |
Outer Hose Diameter | 3/4 in |
Material | Steel |
Width | 8.25 in |
Height | 21.25 in |
Depth | 19.5 in |
Swivel Seals Material | Nitrile |
Maximum Pressure | 300 psi |
Hose Included | Yes |
Retraction | Spring Driven |
