Features
Specifications

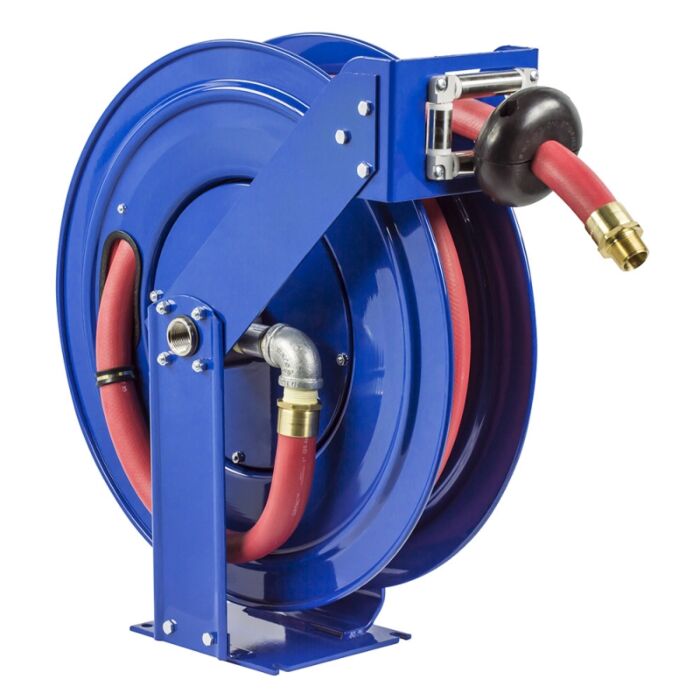

COXREELS® fuel dispensing reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. COXREELS® professional fuel dispensing supreme duty dual pedestal (T Series) reels are an essential component found in utility, ground support and bulk liquid handling transport services mounted on fuel storage and dispensing systems, fuel/lube trucks, aircraft refuelers and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.
- Swivel - machined from zinc plated steel 90 deg full flow NPT swivel for fuel dispensing applications
- Cartridge motor - lubricated and enclosed cartridge style motor is easily removable for safe and convenient maintenance
- CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4 in steel base - sturdy dual pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
- Equipped with COXREELS® exclusive Super Hub™ triple axle support
- Multi-position guide arm - versatile multi-position guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
- Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish, adjustable solid rubber hose stop, fuel dispensing hose and sturdy permanently lubricated precision bearing
Brand | Coxreels |
---|---|
Store Location (Lititz, PA) | Aisle 12, Section T6 |
Package Length (in) | 7.40" |
Package Width (in) | 25.80" |
Package Height (in) | 23.20" |
Manufacturer Part Number | TSHF-N-635 |
Type | 2-Pedestal Low Pressure Supreme Duty Specialty |
Series | T Fuel Series |
Hose Capacity | 1 in ID x 1-1/2 in OD x 35 ft L |
Pressure Rating | 300 psi |
Drive Type | Cartridge Style Spring Motor |
Mounting Type | Bench/Ceiling/Floor/Vehicle |
Swivel Material | Nickel Plated Steel |
Seal Type | Nitrile |
Dimensions | 10 in W x 24 in L x 25-1/2 in H |
Material | Steel |
Finish | CPC™ Powder Coated |
Color | Blue |
