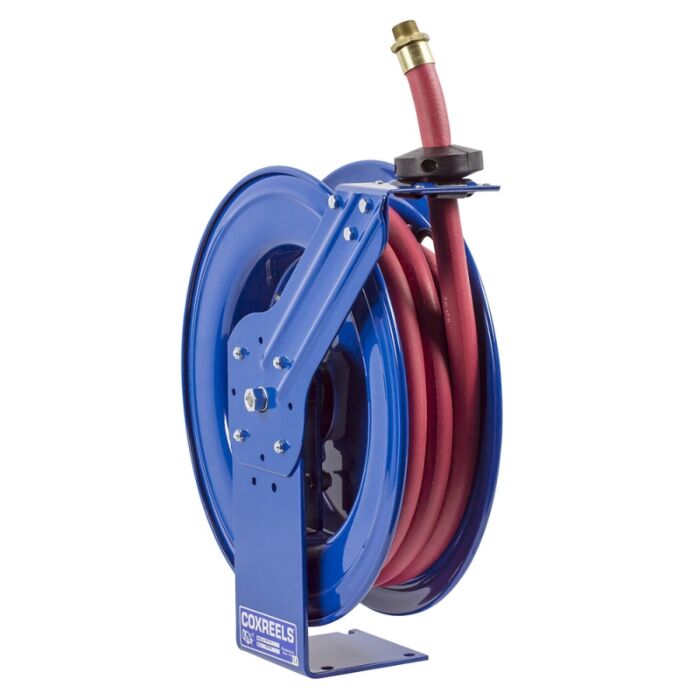

COXREELS® SH Series Super Hub™ Spring Driven Hose Reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. COXREELS® original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
- Swivel - machined from zinc plated steel 90 deg full flow NPT swivel for fuel dispensing applications
- Cartridge motor - lubricated and enclosed cartridge style motor is easily removable for safe and convenient maintenance
- CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4 in steel base - sturdy dual pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
- Equipped with COXREELS® exclusive Super Hub™ triple axle support
- Multi-position guide arm - versatile multi-position guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
- Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish, adjustable solid rubber hose stop, fuel dispensing hose and sturdy permanently lubricated precision bearing
Brand | Coxreels |
---|---|
Store Location (Lititz, PA) | Aisle 12, Section T6 |
Package Length (in) | 8.20" |
Package Width (in) | 22.20" |
Package Height (in) | 17.60" |
Manufacturer Part Number | SHF-N-525 |
Type | 1-Pedestal Heavy Duty Specialty |
Series | SH Fuel Series |
Hose Capacity | 3/4 in ID x 1-3/16 in OD x 25 ft L |
Pressure Rating | 300 psi |
Drive Type | Cartridge Style Spring Motor |
Mounting Type | Bench/Ceiling/Floor/Vehicle |
Swivel Material | Brass |
Seal Type | Nitrile |
Dimensions | 9-3/8 in W x 19-1/2 in L x 25-1/2 in H |
Material | Steel |
Finish | CPC™ Powder Coated |
Color | Blue |
