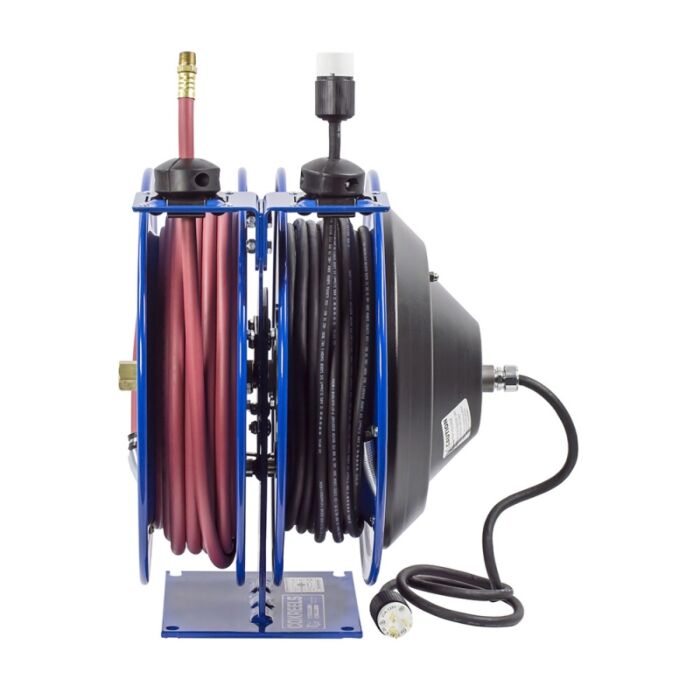

50 ft 3/8 in 5/8 in Low Pressure Hose Reel
SKU: CL3505016A
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$804.99
Features
Specifications
Coxreels C Series Combination spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in air hose/electrical cord combinations.
- External fluid path with machined from solid brass 90 Deg full-flow NPT swivel inlet
- External CPC™ powder coated steel components cover for simple slip ring routine maintenance
- Include 5 ft lead cable and grounding plug
- Compact two reel assembly for dual hose applications, each reel operates independently
- Guide arm adjusts to wall, floor and overhead positions
- One mounting pattern allow 1/2 the installation time required to install 2 reels at one station
- Enclosed factory tuned & matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl and zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
| Brand | Coxreels |
|---|---|
| Store Location (Lititz, PA) | Aisle 28, Section T1 |
| Manufacturer Part Number | C-L350-5016-A |
| Type | Low Pressure |
| Series | C |
| Hose Capacity | 50 ft |
| Inner Hose Diameter | 3/8 in |
| Outer Hose Diameter | 5/8 in |
| Material | Steel |
| Width | 16 in |
| Height | 18.63 in |
| Depth | 17 in |
| Swivel Seals Material | Nitrile |
| Maximum Pressure | 300 psi |
| Hose Included | Yes |
| Retraction | Spring Driven |
