Monarch Industries Inc

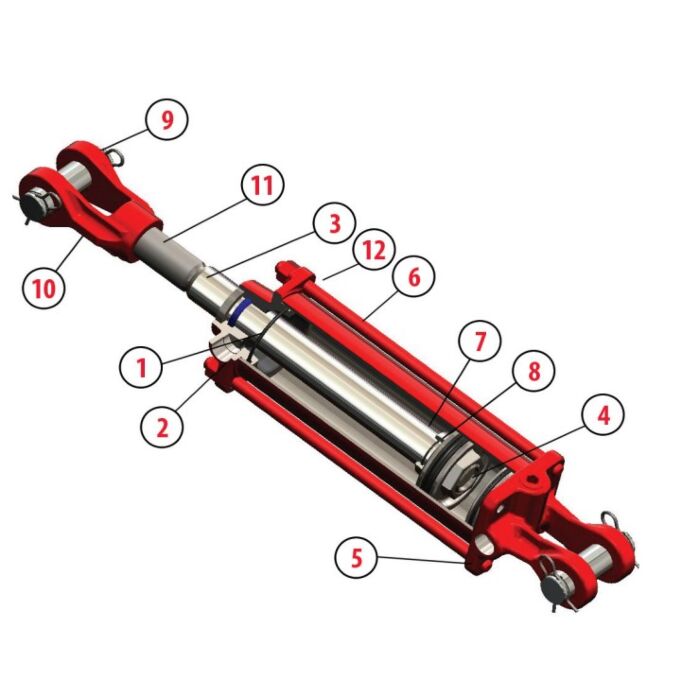

2-1/2 in 12 in 2500 psi Steel Hydraulic Cylinder
SKU: 25TX12 | Location: Aisle 06, Section W3
$174.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
Hydraulic Cylinder, 2-1/2 in Cylinder Bore, 12 in Stroke, 3/8 in NPT, 1-1/8 in Rod Dia, 2500 psi, Steel, Red
- High strength, hard chrome-plated shaft provides extended cylinder life in harsh applications and promotes dry sealing
- Precision-finished skived and burnished heavy wall steel tubing for extended seal and cylinder life
- High Grade Ductile iron caps come with drilled oil passages and increased bearing surface for high shock and side load applications
- High-tensile steel tie rods prevent failure at high pressure and provide a long service life
- Precision-machined, ductile iron piston provides a forgiving bearing surface for extended life
- Heavy-duty steel, torqued, self-locking piston nut holds piston firm under high-cycle loading
Brand | Monarch Industries Inc |
---|---|
UPC | 085635485095 |
Store Location (Lititz, PA) | Aisle 06, Section W3 |
Package Length (in) | 3.40" |
Package Width (in) | 5.00" |
Package Height (in) | 5.00" |
Manufacturer Part Number | 648509 |
Cylinder Bore Size | 2-1/2 in |
Stroke Length | 12 in |
Port Size | 3/8 in NPT |
Rod Diameter | 1-1/8 in |
Pressure Rating | 2500 psi |
Material | Steel |
Color | Red |
