2-1/2 in 18 in 2500 psi Steel Hydraulic Cylinder
SKU: 25TX18
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$264.99
Features
Specifications
Hydraulic Cylinder, 2-1/2 in Cylinder Bore, 18 in Stroke, 3/8 in NPT, 1-1/4 in Rod Dia, 2500 psi, Steel, Red

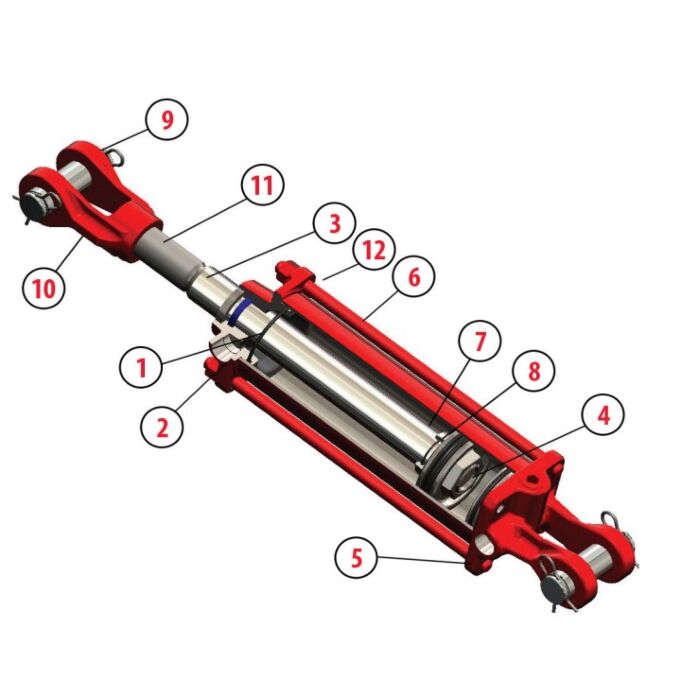

- High strength, hard chrome-plated shaft provides extended cylinder life in harsh applications and promotes dry sealing
- Precision-finished skived and burnished heavy wall steel tubing for extended seal and cylinder life
- High Grade Ductile iron caps come with drilled oil passages and increased bearing surface for high shock and side load applications
- High-tensile steel tie rods prevent failure at high pressure and provide a long service life
- Precision-machined, ductile iron piston provides a forgiving bearing surface for extended life
- Heavy-duty steel, torqued, self-locking piston nut holds piston firm under high-cycle loading
| Brand | Monarch Industries Inc |
|---|---|
| UPC | 085635487662 |
| Manufacturer Part Number | 648766 |
| Cylinder Bore Size | 2-1/2 in |
| Stroke Length | 18 in |
| Port Size | 3/8 in NPT |
| Rod Diameter | 1-1/4 in |
| Pressure Rating | 2500 psi |
| Material | Steel |
| Color | Red |
