Monarch Industries Inc
3 in 14 in 2500 psi Steel Hydraulic Cylinder
SKU: 30TX14
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$264.99
Features
Specifications
Hydraulic Cylinder, 3 in Cylinder Bore, 14 in Stroke, 1/2 in NPT, 1-1/4 in Rod Dia, 2500 psi, Steel, Red

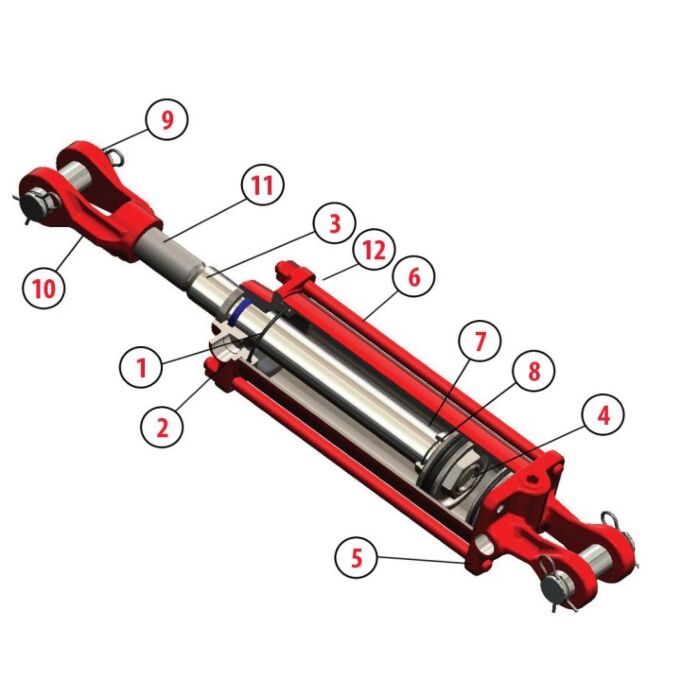

- High strength, hard chrome-plated shaft provides extended cylinder life in harsh applications and promotes dry sealing
- Precision-finished skived and burnished heavy wall steel tubing for extended seal and cylinder life
- High Grade Ductile iron caps come with drilled oil passages and increased bearing surface for high shock and side load applications
- High-tensile steel tie rods prevent failure at high pressure and provide a long service life
- Precision-machined, ductile iron piston provides a forgiving bearing surface for extended life
- Heavy-duty steel, torqued, self-locking piston nut holds piston firm under high-cycle loading
| Brand | Monarch Industries Inc |
|---|---|
| UPC | 085635485163 |
| Store Location (Lititz, PA) | Aisle 06, Section W4 |
| Package Length (in) | 26.00" |
| Package Width (in) | 5.00" |
| Package Height (in) | 4.00" |
| Manufacturer Part Number | 648516 |
| Cylinder Bore Size | 3 in |
| Stroke Length | 14 in |
| Port Size | 1/2 in NPT |
| Rod Diameter | 1-1/4 in |
| Pressure Rating | 2500 psi |
| Material | Steel |
| Color | Red |
