Holmbury

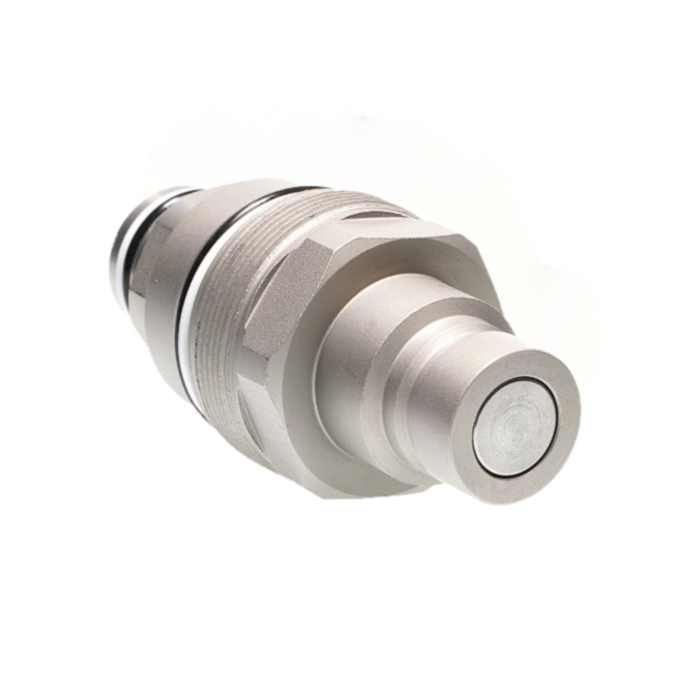

M48-1.5 Female 5075 psi Flat Face Hydraulic Coupling
SKU: FFC12FM48
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$234.99
Features
Specifications
Flat Face Hydraulic Coupling, Cartridge, Series: FFC, M48-1.5 Nominal, Female, 5075 psi, Carbon Steel, -40 to 106 deg C, Zinc Nickel Plating
- Internal design allows the female half to always be depressurized when disconnected
- Male has built-in connect under pressure functionality
- Couplings are flat face and are designed to the ISO 16028 Standard
- Low profile coupler design minimizes side loading
| Brand | Holmbury |
|---|---|
| Store Location (Lititz, PA) | Aisle 06, Section W1 |
| Package Length (in) | 3.20" |
| Package Width (in) | 1.20" |
| Package Height (in) | 1.60" |
| Manufacturer Part Number | FFC12-F-M48 |
| Type | Cartridge |
| Series | FFC |
| Nominal Size | M48-1.5 |
| Connection Type | Female |
| Pressure Rating | 5075 psi |
| Material | Carbon Steel |
| Temperature Rating | -40 to 106 deg C |
| Finish | Zinc Nickel Plating |
