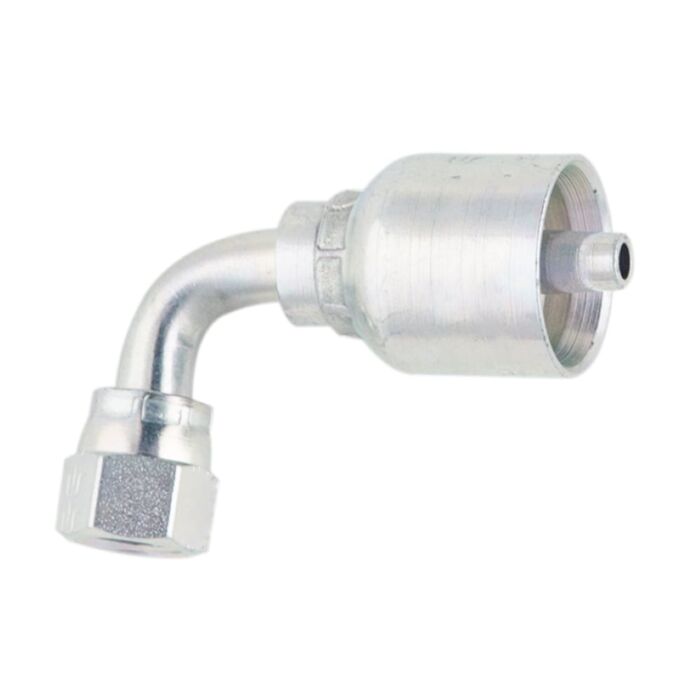

1-1/16 in-12 Female JIC Carbon Steel Swivel Short Drop Hydraulic Hose End
SKU: 13943X1210
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$49.99
Features
Specifications
Configure permanent hose assemblies quickly, easily and cost-effectively with compression-style HY Series fittings for use with Parkrimp crimpers.
| Brand | Parker |
|---|---|
| Package Length (in) | 3.40" |
| Package Width (in) | 1.80" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | 13943-12-10 |
| Type | Swivel, Short Drop |
| Hose ID | 5/8 in |
| Connection Size | 3/4 in |
| Thread Size | 1-1/16 in-12 |
| Connection Type | Female JIC |
| Length | 3.07 in |
| Nut Hex Size | 1-1/4 in |
| Angle | 90 deg |
| Material | Carbon Steel |
| Shape | Elbow |
