Prince Manufacturing Corporation

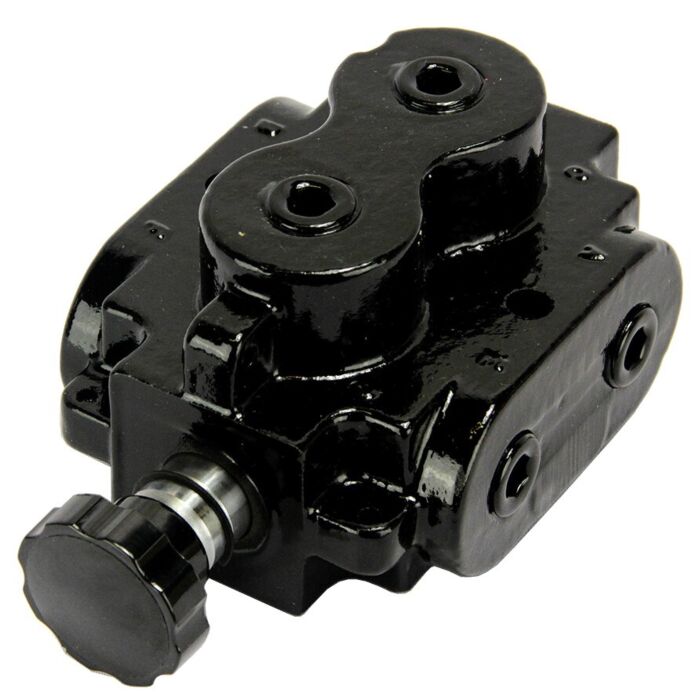

1/2 in NPT 2500 psi 2-Position Double Selector Valve with knob Handle
SKU: DS1A1D
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$189.99
Features
Specifications
The PRINCE valve model DS is a manual 6-way 2 position double selector valve. This valve will divert the flow going to two separate hydraulic circuits. For example two double acting cylinders or two reversible hydraulic motors can be operated by one four-way valve. When the double selector spool is pushed in, the C and D ports (top ports) are connected to the A and E ports (right ports). When the selector spool is pulled out, the C and D ports are connected to the B and F ports (left ports). An optional series/parallel spool is also available. This spool will run two reversible hydraulic motors in series when the spool is out and in parallel when the spool is pushed in.
| Brand | Prince Manufacturing Corporation |
|---|---|
| Store Location (Lititz, PA) | Aisle 06 End Cap |
| Package Length (in) | 5.80" |
| Package Width (in) | 3.60" |
| Package Height (in) | 10.40" |
| Type | 2-Position |
| Nominal Size | 1/2 in NPT |
| Pressure Rating | 2500 psi |
| Flow Rate | 40 gpm |
| Number of Ports/Ways | 6-Way |
| Body Material | Cast Iron |
