Prince Manufacturing Corporation

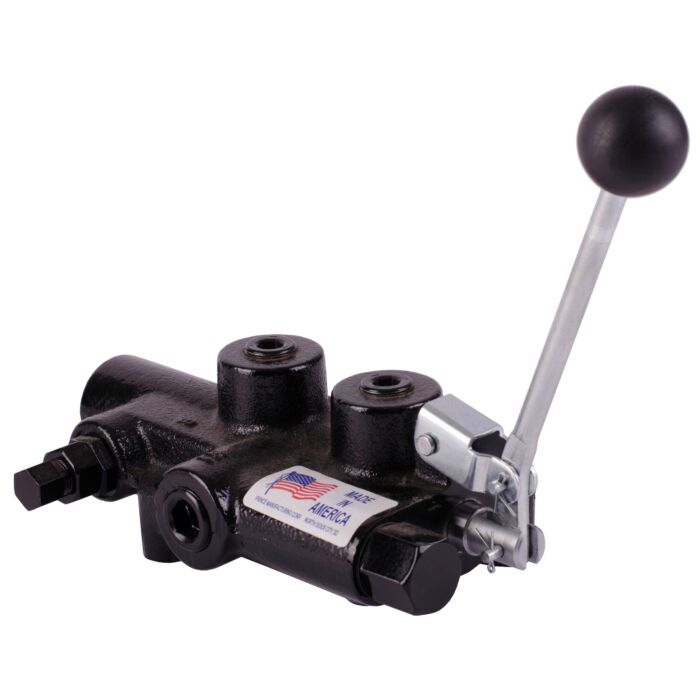

3/4 in NPT 1/2 in NPT 2250 psi Log Splitter Valve
SKU: LS30001
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$299.99
Features
Specifications
Log Splitter Valve, 3/4 in NPT Nominal, 1/2 in NPT, 2250 psi, 25 gpm, 180 deg F, 9-1/4 x 5 x 3 in
- Hydraulically balanced, hard chrome plated spool
- Handle can be installed in "up" or "down" position
- Detent release pressure adjustable from 1000 to 2000 psi
- For use with system flows up to 25 gpm
- Relief valve adjustable up to 2750 psi
- Tandem center spool (in neutral position, both work ports
- Ideal for log-splitter applications. Available with 3/4 in
| Brand | Prince Manufacturing Corporation |
|---|---|
| Store Location (Lititz, PA) | Aisle 06 End Cap |
| Package Length (in) | 9.20" |
| Package Width (in) | 3.40" |
| Package Height (in) | 6.00" |
| Nominal Size | 3/4 in NPT |
| Port Size | 1/2 in NPT |
| Pressure Rating | 2250 psi |
| Flow Rate | 25 gpm |
| Temperature Rating | 180 deg F |
| Dimensions | 9-1/4 x 5 x 3 in |
