Prince Manufacturing Corporation

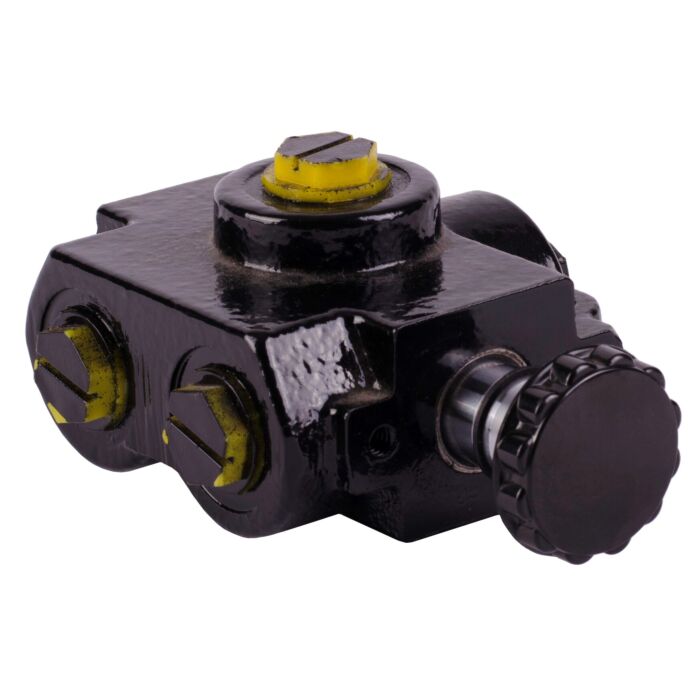

1/2 in NPT 2500 psi 2-Position Single Selector Valve with knob Handle
SKU: SVS2 | Location: Aisle 06 End Cap
$139.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
The PRINCE valve model SS is a manual 3-way 2 position selector valve. This valve will allow one pump source to supply two circuits. With the standard selector spool pulling the spool out diverts oil to port nearest handle, pushing the spool in diverts oil to the port away from the handle. The valve has an inlet on both the bottom and front of the valve body. Special options include lever handle and a float spool. The float spool connects the inlet to both outlets when the spool is pushed in and blocks both outlets when spool is pulled out.
Brand | Prince Manufacturing Corporation |
---|---|
Store Location (Lititz, PA) | Aisle 06 End Cap |
Package Length (in) | 4.60" |
Package Width (in) | 2.40" |
Package Height (in) | 7.80" |
Type | 2-Position |
Nominal Size | 1/2 in NPT |
Pressure Rating | 2500 psi |
Flow Rate | 20 gpm |
Number of Ports/Ways | 3-Way |
Body Material | Cast Iron |
Dimensions | 5-1/8 in L x 3-1/4 in W x 2-1/4 in H |
