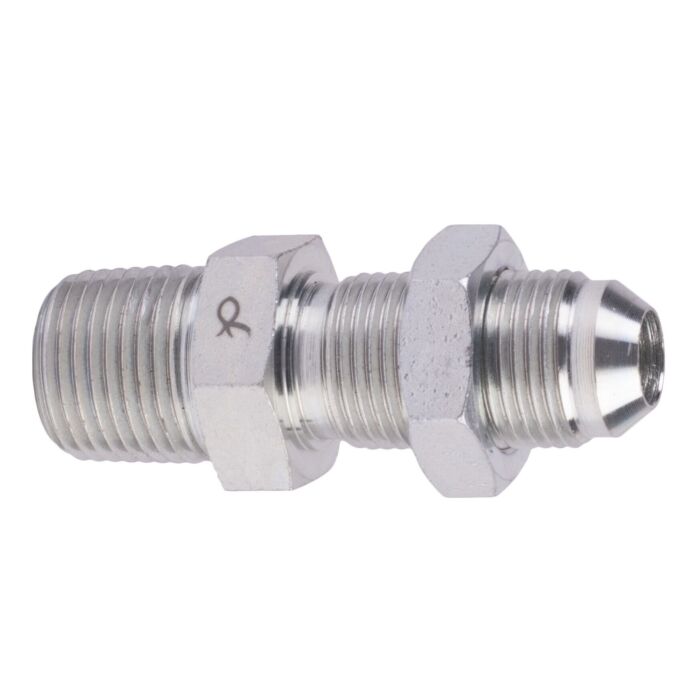

Hydraulic Bulkhead MPT x MJIC

Pipe to JIC Bulkhead with Locknut 3/8 MPT x 3/8 MJIC

Pipe to JIC Bulkhead with Locknut 1/2 MPT x 1/2 MJIC

Pipe to JIC Bulkhead with Locknut 1/2 MPT x 5/8 MJIC

Pipe to JIC Bulkhead with Locknut 3/4 MPT x 3/4 MJIC

Pipe to JIC Bulkhead with Locknut 1 MPT x 1 MJIC

SKU: 2706-
SKU: 2706LN0606
SKU: 2706LN0808
SKU: 2706LN0810
SKU: 2706LN1212
SKU: 2706LN1616
Select options to see availability
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down

Options

Features chevron-down chevron-up
JIC to Pipe Bulkhead with Locknut 3/8 MPT x 3/8 MJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
  • With Locknut
JIC to Pipe Bulkhead with Locknut 3/8 MPT x 3/8 MJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
  • With Locknut
JIC to Pipe Bulkhead with Locknut 1/2 MPT x 1/2 MJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
  • With Locknut
JIC to Pipe Bulkhead with Locknut 1/2 MPT x 5/8 MJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
  • With Locknut
JIC to Pipe Bulkhead with Locknut 3/4 MPT x 3/4 MJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
  • With Locknut
JIC to Pipe Bulkhead with Locknut 1 MPT x 1 MJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
  • With Locknut
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 06, Section X3
Package Length (in) 0.60"
Package Width (in) 2.00"
Package Height (in) 0.20"
Tube OD 3/8 in
Thread Size 1 3/8 in-18 MNPTF
Thread Size 2 9/16 in-18 MJIC
Size 3/8 in
Material Carbon Steel
Pressure Rating 6000 psi
Hex Size 13/16 in
Length 2.22 in
Assembled Size 1.28 in
Diameter 0.56 in
Store Location (Lititz, PA) Aisle 06, Section X3
Package Length (in) 0.60"
Package Width (in) 2.00"
Package Height (in) 0.20"
Tube OD 3/8 in
Thread Size 1 3/8 in-18 MNPTF
Thread Size 2 9/16 in-18 MJIC
Size 3/8 in
Material Carbon Steel
Pressure Rating 6000 psi
Hex Size 13/16 in
Length 2.22 in
Assembled Size 1.28 in
Diameter 0.56 in
Store Location (Lititz, PA) Aisle 06, Section X3
Package Length (in) 1.00"
Package Width (in) 2.20"
Package Height (in) 0.60"
Tube OD 1/2 in
Thread Size 1 1/2 in-14 MNPTF
Thread Size 2 3/4 in-16 MJIC
Size 1/2 in
Material Carbon Steel
Pressure Rating 6000 psi
Hex Size 1 in
Length 2.6 in
Assembled Size 1.44 in
Diameter 3/4 in
Store Location (Lititz, PA) Aisle 06, Section X3
Package Length (in) 1.40"
Package Width (in) 2.40"
Package Height (in) 0.40"
Tube OD 1/2 in
Thread Size 1 1/2 in-14 MNPTF
Thread Size 2 7/8 in-14 MJIC
Size 5/8 in
Material Carbon Steel
Pressure Rating 5000 psi
Hex Size 1-1/8 in
Length 2.72 in
Assembled Size 1.58 in
Diameter 0.88 in
Store Location (Lititz, PA) Aisle 06, Section X3
Package Length (in) 1.00"
Package Width (in) 2.80"
Package Height (in) 1.00"
Tube OD 3/4 in
Thread Size 1 3/4 in-14 MNPTF
Thread Size 2 1-1/16 in-12 MJIC
Size 3/4 in
Material Carbon Steel
Pressure Rating 5000 psi
Hex Size 1-3/8 in
Length 2.93 in
Assembled Size 1-3/4 in
Diameter 1.06 in
Store Location (Lititz, PA) Aisle 06, Section X3
Package Length (in) 1.60"
Package Width (in) 2.80"
Package Height (in) 1.40"
Tube OD 1 in
Thread Size 1 1 in-11.5 MNPTF
Thread Size 2 1-5/16 in-12 MJIC
Size 1 in
Material Carbon Steel
Pressure Rating 4500 psi
Hex Size 1-5/8 in
Length 3.11 in
Assembled Size 1-3/4 in
Diameter 1.31 in
