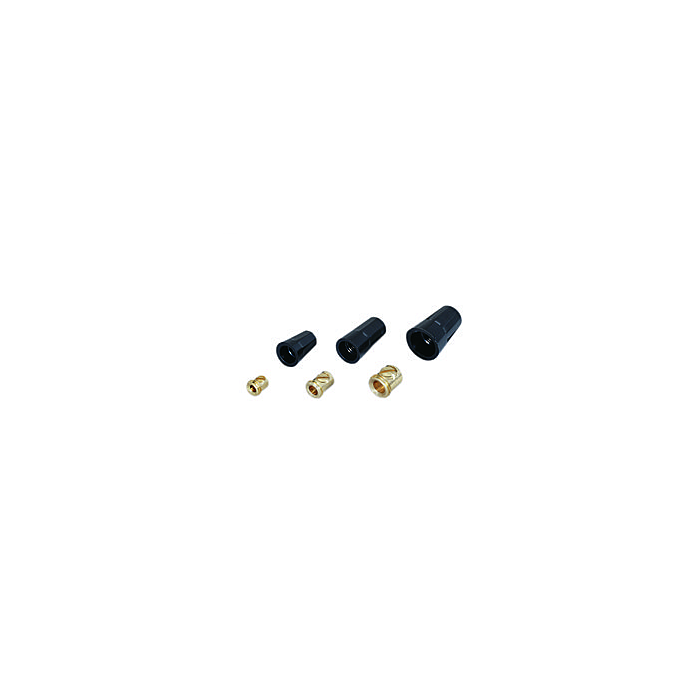

IDEAL 30-222 600v #20-10awg Set Screw Wire Connector
SKU: E10307
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2.59
Features
Specifications
Downloads
IDEAL 30-222 600v #20-10awg Set Screw Wire Connector (100/Box)
- IDEAL’s set screw wire connectors ensure a vibration-resistant splice, perfect for applications near motors or other vibration. The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 AWG - 10 AWG. Each package contains plastic caps, allowing for insulation of the splice after installation, as well as a set screw holder to allow for ease of installation.
- Eliminates need for restriping wire each time the connection is disturbed
- Set screw easily and securely applies maximum compression to conductors to ensure a vibration-resistant splice
- Permits fast visual inspection of splice
- Tough, flame-retardant shell rated at 150°C (302°F)
- UL listed to 486C and CSA Certified to C22.2 #188; comply with Federal Specification W-S-610E
| Brand | Ideal Industries |
|---|---|
| Store Location (Lititz, PA) | Aisle 08, Section D4 |
| Package Length (in) | 0.63" |
| Package Width (in) | 2.00" |
| Package Height (in) | 4.00" |
| Manufacturer Part Number | 30-222 |
| Model | 22 |
| Wire Combination Range | 600V 20 thru 10 AWG Min. 1 #16 w/3 #18 – Max. 2 #10 w/1 #12 |
| Quantity | Box of 100 |
