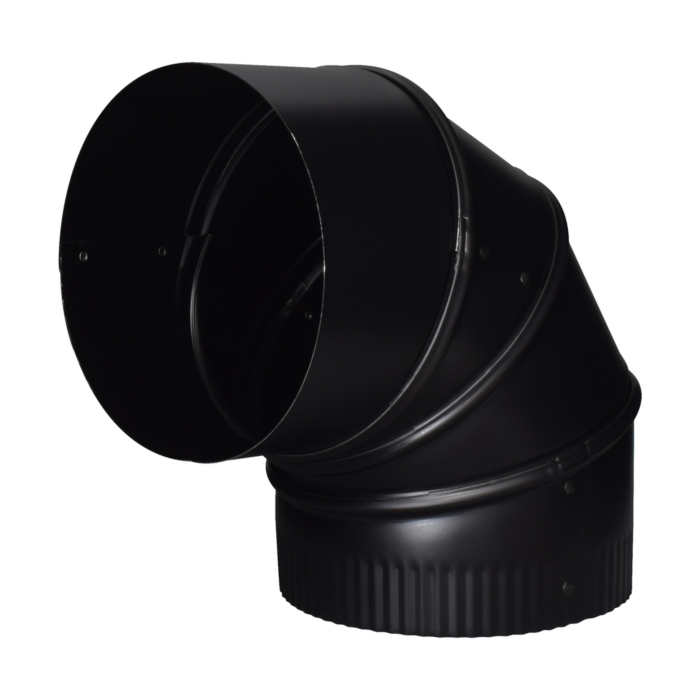

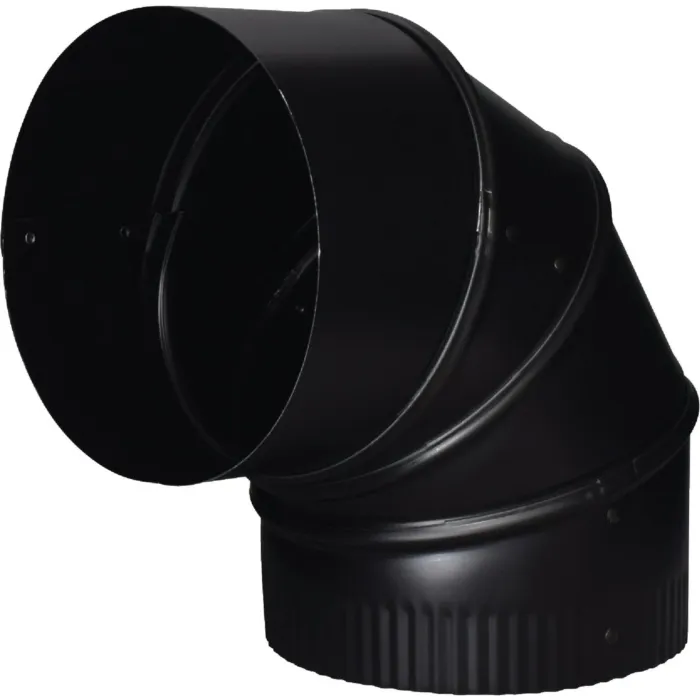

Complete your wood stove installation project with this Imperial 6-in stove pipe adjustable elbow. Featuring a 0° to 90° adjustable design, the stove pipe elbow allows for angular and gradual turns in single-wall stove pipe connections. The chip-resistant and scratch-resistanComplete your wood stove installation project with this Imperial 6-in stove pipe adjustable elbow. Featuring a 0° to 90° adjustable design, the stove pipe elbow allows for angular and gradual turns in single-wall stove pipe connections. The chip-resistant and scratch-resistant painted black matt finish and 24-gauge cold-rolled steel construction deliver durability and lasting performance. The elbow has a maximum temperature rating of 700°F, with a short-term exposure rating up to 800°F. A crimped end allows for making easy connections, and the elbow is suitable for use with 6-in round pipe or fitting openings.
- Allows for angular and gradual turns in stove pipe installations
- Adjusts from 0° to 90° turns for flexible use
- 24-gauge single-wall steel construction for durability and lasting performance
- Black matt painted finish resists scratching and chipping
- Compatible with 6-in diameter round pipe or fitting openings
- Install crimped end downward toward the stove to prevent any condensation or creosote leakage
- 18-in minimum clearance from combustible materials (walls and ceilings) is required
- Maximum continuous temperature rating of 700°F with short-term 800°F exposure
- Secure the stove pipe using a minimum of 3 stove pipe screws at each connection
Brand | Imperial |
---|---|
UPC | 063467210030 |
Store Location (Lititz, PA) | Aisle 01, Section C8 |
Package Length (in) | 7.80" |
Package Width (in) | 7.40" |
Package Height (in) | 6.20" |
Manufacturer Part Number | BM0014 |
Country of Origin | Canada |
Length | 9 inches |
Width | 6 inches |
Height | 9 inches |
Weight | 1.34 lbs. |
