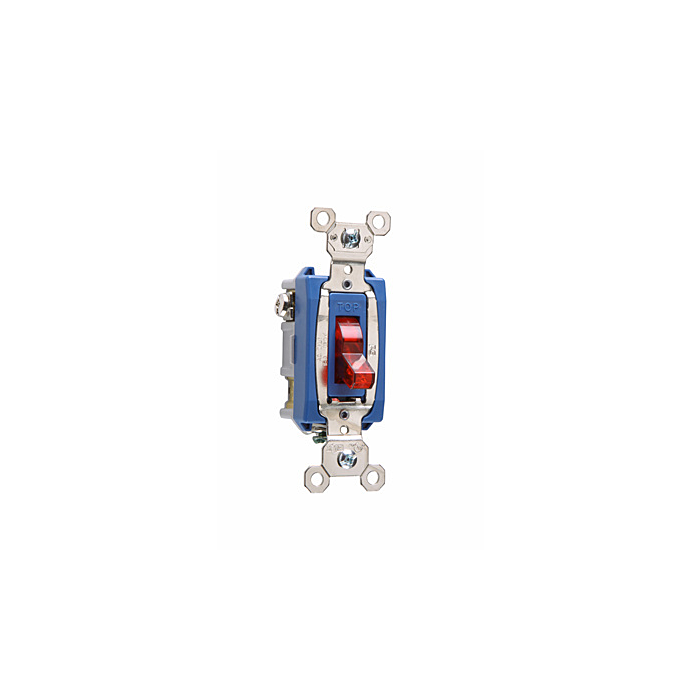

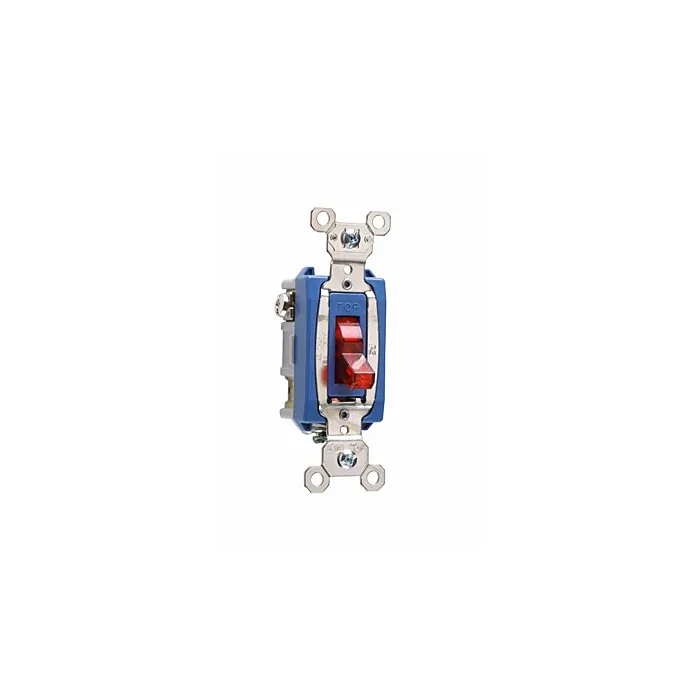

Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red
SKU: PS15AC1RPL
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.99
Features
Specifications
Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red
- One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
- Impact- and chemical-resistant cover.
- Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
- One-piece nickel-plated brass strap for superior corrosion-resistance.
- Auto-ground clip assures positive ground.
- Cam control and spring actuator for positive ''makes and breaks.''
- Heavy-duty bumpers for quiet, smooth operation.
- Locking support provides resistance to face and back body separation.
- Oversized silver-alloy contacts for long life and better heat dissipation.
- Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
- Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
- Grounding terminal is standard with screw-pressure plate back wire.
- Shallow design for easier installation.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- cULus Listed
- Federal Spec Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007195804 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 2.19" |
| Package Width (in) | 1.81" |
| Package Height (in) | 1.81" |
| Manufacturer Part Number | PS15AC1RPL |
| Depth | 1.073 in |
| Type | Switch |
| Height | 3.281 in |
| Width | 1.32 in |
| Load Type | Incandescent |
| Country of Origin | Mexico |
| Standard | FEDSPEC |
| Amperage | 15.0 A |
| Voltage | 277 VAC |
| Number of Gangs | 1 |
| Switch Type | Toggle |
| Features | Pilot Light |
| Indoor/Outdoor | Indoor |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Wall Plate Included | No |
| Throw Type | Single Throw |
| Requires Neutral Wire | No |
| Number of Poles | Single Pole |
| Application Sector | Industrial |
| Load Rating | 15 A @ 120/277 VAC |
| Connection Location | Back and Side |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Color | Red |
| Finish | Matte |
| Material | Thermoplastic |
| Product Line | Pass & Seymour |
| Special Features | Pilot light switch, back & side wire, red light when on |
