Features
Specifications

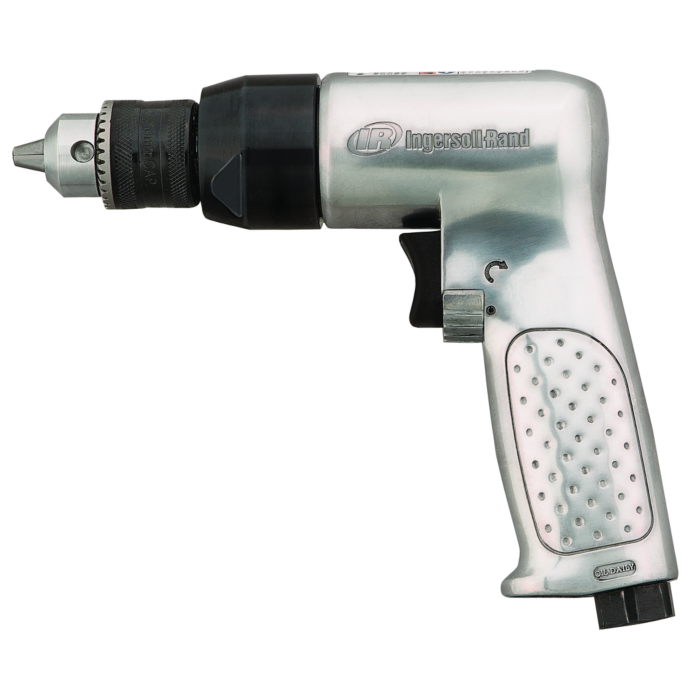

A classic pistol-shaped air drill, the 3/8” comes in multiple configurations and is great for honing, reaming or drilling holes.
- Great For Honing
- Reaming Or Drilling Holes.
- 3/8" Chuck
- Multiple Configurations: Whether you want the solid connection of a keyed chuck or the versatility of a keyless version, this series of 3/8” Air Drill has an option for you.
- Reversible and Non-Reversible: The 3/8” Air Drill comes in a traditional, non-reversible model as well as a reversible one that allows you to choose between forward and reverse
Brand | Ingersoll Rand |
---|---|
UPC | 663023019659 |
Store Location (Lititz, PA) | Aisle 30, Section M2 |
Package Length (in) | 2.40" |
Package Width (in) | 7.20" |
Package Height (in) | 7.20" |
Manufacturer Part Number | 7802RA |
Country of Origin | China |
Prime Location | Charlotte, NC |
Actuation/Throttle Type/Switch Type | Pistol Trigger |
Air Consumption @ Load (cfm) | 24.3 |
Air Consumption @ Load (l/min) | 841 |
Air Inlet NPT (in) | 1/4 |
Air Pressure (psi) | 90 |
Average Air Consumption (cfm) | 29.7 |
Average Air Consumption (l/min) | 841 |
Bearing Type | Ball & Roller |
Chuck Capacity/Bit Capacity (in) | 3/8 |
Chuck Type | Keyed Chuck |
Configuration/Handle Type | Pistol Grip |
Duty Rating | General Duty |
Exhaust Location | Handle |
Free Speed (rpm) | 2000 |
Gear Train | Planetary |
Handle Material | Aluminum |
Head Style | Pistol Grip |
Height Over Spindle (in) | 5.05 |
Housing Material | Aluminum |
Max Working Torque (in-lb) | 25 |
Max Working Torque (nm) | 2.83 |
Min Hose Size (in) | 3/8 |
Nominal Drilling Capabilities (Alum 2024t4) | 15/64 |
Nominal Drilling Capabilities (Steel 1213) | 1/4 |
Nominal Drilling Capabilities (Stnls Steel Type 34) | 1/8 |
Nominal Drilling Capabilities (Wood Med or Frp) | 5/16 |
Power Source | Air Powered |
Height | 6 in |
Product Height (mm) | 152 |
Length | 6.5 in |
Weight | 2.9 lb |
Width | 7.24 in |
Rated Power (hp) | 0.5 |
Reversible | Reversible |
Side to Center Distance (in) | 0.91 |
Sound Pressure/Power Db(A) | 83.0 / 94.0 |
Speed Setting | Variable Speed |
Spindle Attachment | Drill Chuck |
Spindle Thread Size (in) | 3/8-24 |
Stall Torque (in-lb) | 43 |
Stall Torque (nm) | 4.86 |
Vibration Level (m/s2) | 2.8 |
Warranty | 1-year |
