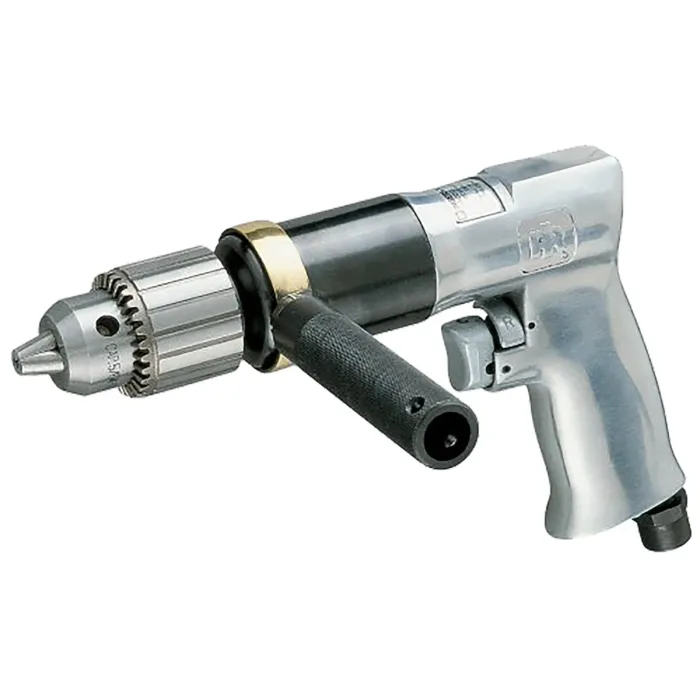

The 1/2” Air Drill is a traditionally pistol shaped drill. With a feather trigger for variable speed options and a number of different configurations, this drill is as versatile as it is efficient.
- 1/2 Chuck
- 7816-A48 Side Handle
- Multiple Configurations : The 1/2” Air Drill comes in multiple configurations, with both reversible and non-reversible models available, as well as keyed and keyless chuck options.
- Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time.
- Great For Honing
- Reaming Or Drilling Holes.
Brand | Ingersoll Rand |
---|---|
UPC | 663023000190 |
Store Location (Lititz, PA) | Aisle 30, Section M1 |
Manufacturer Part Number | 7803RA |
Country of Origin | China |
Prime Location | Charlotte, NC |
Actuation/Throttle Type/Switch Type | Pistol Trigger |
Air Consumption @ Load (cfm) | 26.1 |
Air Consumption @ Load (l/min) | 891 |
Air Inlet NPT (in) | 1/4 |
Air Pressure (psi) | 90 |
Average Air Consumption (cfm) | 31.58 |
Average Air Consumption (l/min) | 891 |
Bearing Type | Ball & Roller |
Chuck Capacity/Bit Capacity (in) | 1/2 |
Chuck Type | Keyed Chuck |
Configuration/Handle Type | Pistol Grip |
Duty Rating | General Duty |
Exhaust Location | Handle |
Free Speed (rpm) | 500 |
Gear Train | Planetary |
Handle Material | Aluminum |
Head Style | Pistol Grip |
Height Over Spindle (in) | 5.65 |
Housing Material | Aluminum |
Max Working Torque (in-lb) | 84.5 |
Max Working Torque (nm) | 9.55 |
Min Hose Size (in) | 3/8 |
Nominal Drilling Capabilities (Alum 2024t4) | 1/4 |
Nominal Drilling Capabilities (Steel 1213) | 3/16 |
Nominal Drilling Capabilities (Stnls Steel Type 34) | 3/32 |
Nominal Drilling Capabilities (Wood Med or Frp) | 5/16 |
Power Source | Air Powered |
Height | 6 in |
Product Height (mm) | 152 |
Length | 7.3 in |
Weight | 3.3 lb |
Width | 7.09 in |
Rated Power (hp) | 0.5 |
Reversible | Reversible |
Side to Center Distance (in) | 0.91 |
Sound Pressure/Power Db(A) | 83.0 / 94.0 |
Speed Setting | Variable Speed |
Spindle Attachment | Drill Chuck |
Spindle Thread Size (in) | 3/8-24 |
Stall Torque (in-lb) | 161 |
Stall Torque (nm) | 18.19 |
Vibration Level (m/s2) | < 2.5 |
Warranty | 1-year |
