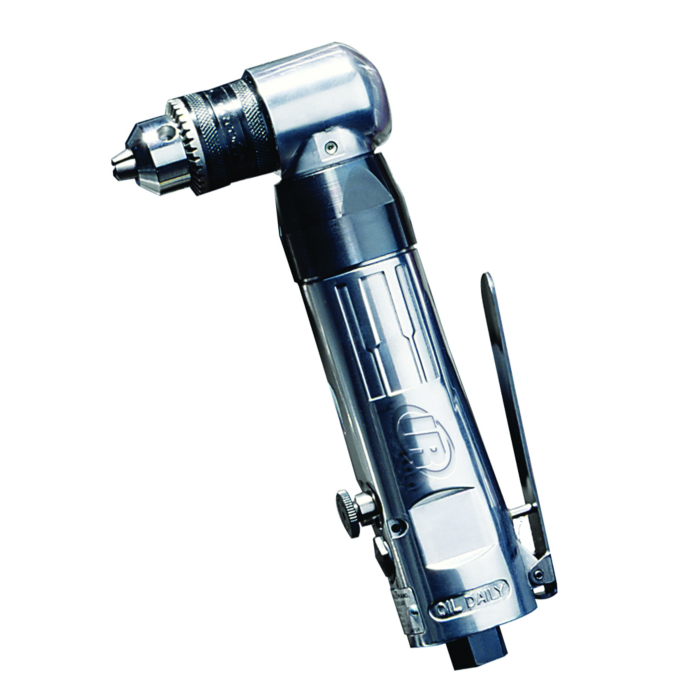

The 3/8” Right Angle Air Drill is a durable, reliable tool that’s great for drilling in all types of materials, including sheet metal, wood and composites.
- Great For Getting Into Tight Places
- Precision: With an angle configuration that allows easier reach and access with an easy-to-control speed lever, you’ll be able to use this air drill with precision and get every job done right.
- Durability: With aluminum housing, this tool is sturdy and durable, and can withstand repeated drops and harsh environments with ease.
- RELIABILITY: You can count on this drill to work time and time again. Comes with a 1 Year Warranty
- 3/8 Chuck
Brand | Ingersoll Rand |
---|---|
UPC | 663023005065 |
Store Location (Lititz, PA) | Aisle 30, Section M1 |
Manufacturer Part Number | 7807R |
Country of Origin | Taiwan |
Prime Location | Charlotte, NC |
Actuation/Throttle Type/Switch Type | Lever |
Air Consumption @ Load (cfm) | 23.2 |
Air Consumption @ Load (l/min) | 656 |
Air Inlet NPT (in) | 1/4 |
Air Pressure (psi) | 90 |
Average Air Consumption (cfm) | 24.2 |
Average Air Consumption (l/min) | 685 |
Bearing Type | Ball & Roller |
Chuck Capacity/Bit Capacity (in) | 3/8 |
Chuck Type | Keyed Chuck |
Configuration/Handle Type | Right Angle |
Duty Rating | General Duty |
Exhaust Location | Handle |
Free Speed (rpm) | 1800 |
Gear Train | Planetary |
Handle Material | Aluminum |
Head Style | Pistol Grip |
Height Over Spindle (in) | 6.9 |
Housing Material | Aluminum |
Max Working Torque (in-lb) | 22 |
Max Working Torque (nm) | 2.49 |
Min Hose Size (in) | 3/8 |
Nominal Drilling Capabilities (Alum 2024t4) | 15/64 |
Nominal Drilling Capabilities (Steel 1213) | 1/4 |
Nominal Drilling Capabilities (Stnls Steel Type 34) | 1/8 |
Nominal Drilling Capabilities (Wood Med or Frp) | 5/16 |
Power Source | Air Powered |
Height | 2.1 in |
Product Height (mm) | 53 |
Length | 8.1 in |
Weight | 2.4 lb |
Width | 4.4 in |
Rated Power (hp) | 0.33 |
Reversible | Reversible |
Right Angle Length (in) | 3 |
Side to Center Distance (in) | 0.83 |
Sound Pressure/Power Db(A) | 88.4 / 99.4 |
Speed Setting | Variable Speed |
Spindle Attachment | Drill Chuck |
Spindle Thread Size (in) | 3/8-24 |
Stall Torque (in-lb) | 41 |
Stall Torque (nm) | 4.63 |
Tool Type | Right Angle |
Vibration Level (m/s2) | < 2.5 |
Warranty | 1-year |
