SKU: 3006229 | Location: Aisle 08, Section W4
$47.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications

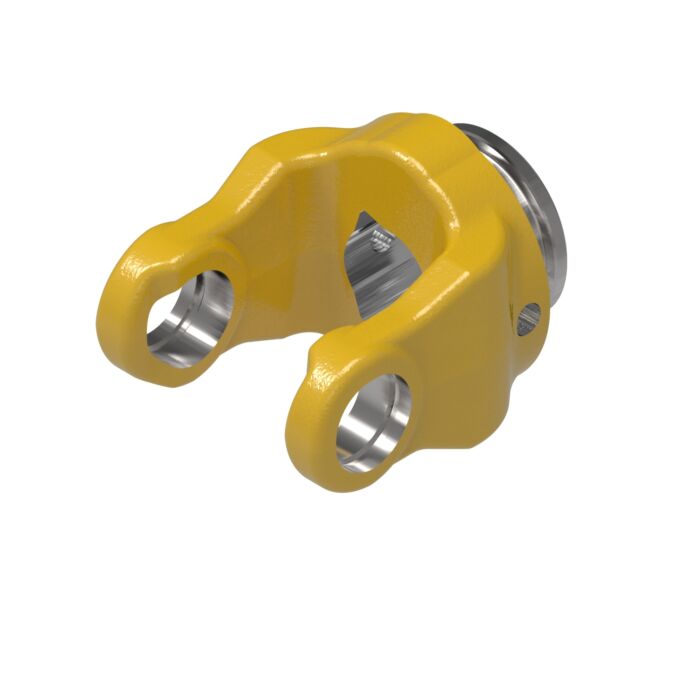

Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.
Brand | Weasler |
---|---|
UPC | 728357300337 |
Store Location (Lititz, PA) | Aisle 08, Section W4 |
Package Length (in) | 4.40" |
Package Width (in) | 0.80" |
Package Height (in) | 3.20" |
Manufacturer Part Number | 300-6229 |
Length | 2.953 inch |
Height | 3.35 inch |
Width | 2 inch |
Weight | 1.46 lb |
Series | AB2 |
Outside Diameter | 1.85" |
Bore | 1.1417" |
Bore Description | 29 MM TRILOBE |
Connection 1 Description | ROLL PIN |
Pin Hole Diameter | 0.315" |
Bearing Diameter 1 | 0.938" |
Bearing Span 1 | 2.406" |
Bearing Diameter 2 | 1.563" |
Bearing Span 2 | 0.175" |
Horsepower at 540 RPM | 25 hp |
Horsepower at 1000 RPM | 38 hp |
