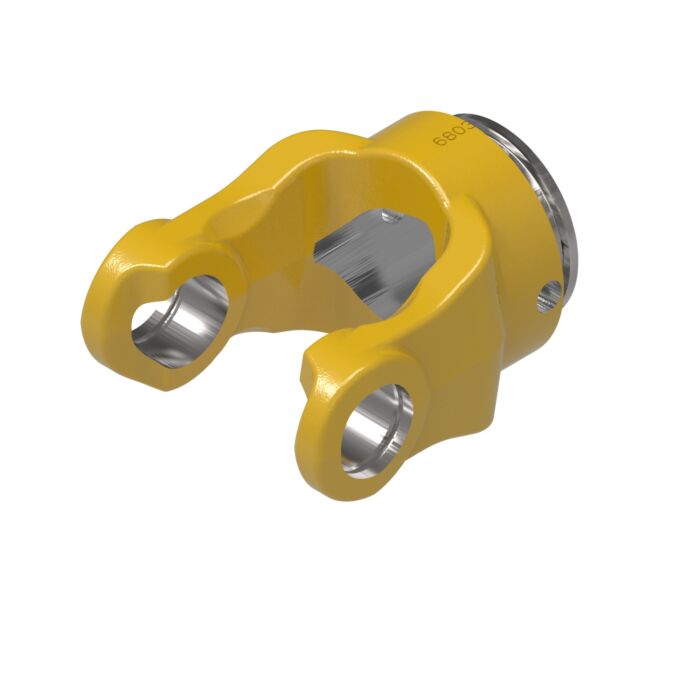

AB8 series yoke with 54 mm trilobe bore and roll pin connection
SKU: 3006854 | Location: Aisle 08, Section W5
$87.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.
| Brand | Weasler |
|---|---|
| UPC | 728357301570 |
| Store Location (Lititz, PA) | Aisle 08, Section W5 |
| Package Length (in) | 4.80" |
| Package Width (in) | 3.20" |
| Package Height (in) | 6.00" |
| Manufacturer Part Number | 300-6854 |
| Length | 4.724 inch |
| Height | 5.12 inch |
| Width | 3.15 inch |
| Weight | 6.06 lb |
| Series | AB8 |
| Bore | 2.126" |
| Bore Description | 54 MM TRILOBE |
| Connection 1 Description | ROLL PIN |
| Bearing Diameter | 1.375" |
| Bearing Span | 4.189" |
| Horsepower at 540 RPM | 120 hp |
| Horsepower at 1000 RPM | 185 hp |
