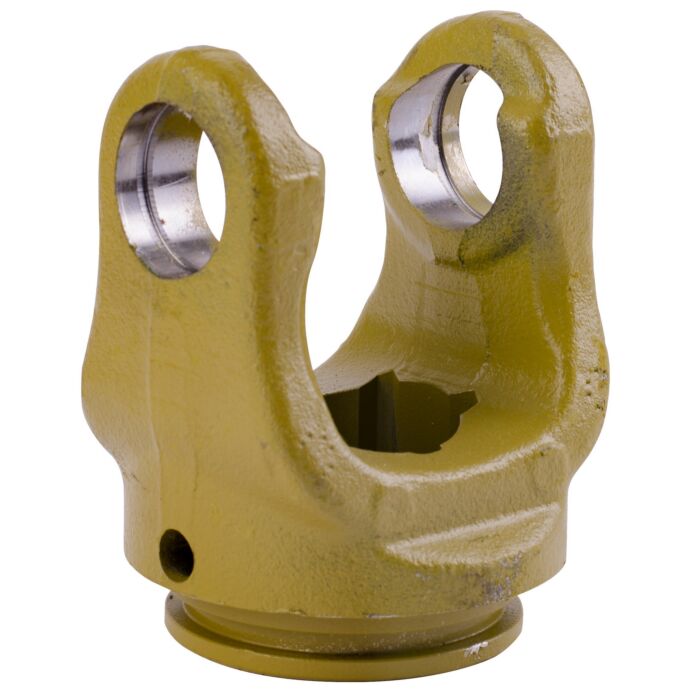

AW35 series yoke with 51 mm star bore and roll pin connection
SKU: 3007651
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$82.38
Features
Specifications
Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.
| Brand | Weasler |
|---|---|
| UPC | 728357311548 |
| Store Location (Lititz, PA) | Aisle 08, Section W5 |
| Package Length (in) | 4.40" |
| Package Width (in) | 3.20" |
| Package Height (in) | 4.40" |
| Manufacturer Part Number | 300-7651 |
| Length | 3.622 inch |
| Height | 4.09 inch |
| Width | 2.76 inch |
| Weight | 3.75 lb |
| Series | AW35 |
| Bore | 2.0079" |
| Bore Description | 51 MM STAR |
| Connection 1 Description | ROLL PIN |
| Bearing Diameter | 1.26" |
| Bearing Span | 2.988" |
| Horsepower at 540 RPM | 66 hp |
| Horsepower at 1000 RPM | 102 hp |
