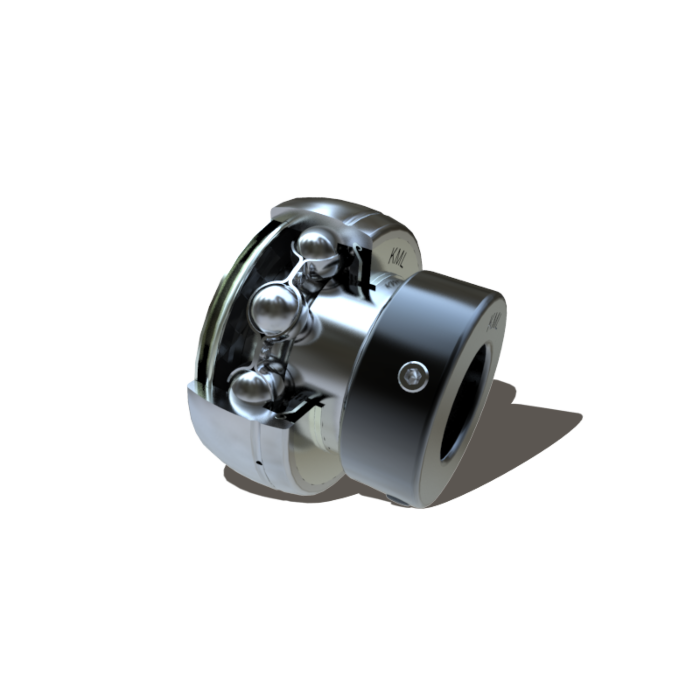

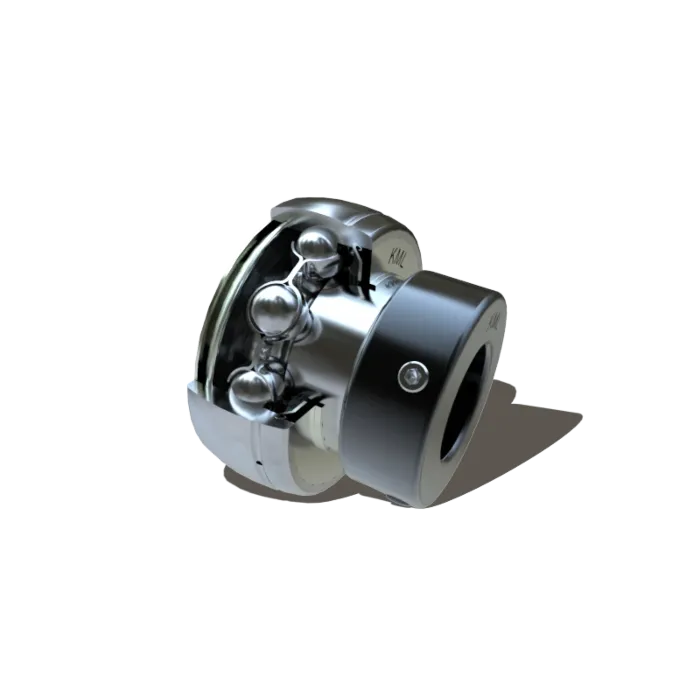

1 in 52 mm 17 mm Triple Lip Insert Bearing
SKU: HC20516R3BOKML
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$25.99
Features
Specifications
Insert Bearing, Triple Lip, Series: HC, 1 in Bore Dia, 52 mm Outside Dia, 1 Rows, 17 mm Width, 3147 lbf Dynamic, 1764 lbf Static, Double Sealed Closure, Alloy Steel Bearing, Rubber Seal, -40 to 250 deg F, Black Oxide, Eccentric Collar
| Brand | KML |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section W1 |
| Package Length (in) | 2.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 2.60" |
| Manufacturer Part Number | HC205-16R3BO |
| Type | Triple Lip |
| Series | HC |
| Bore Diameter | 1 in |
| Outside Diameter | 52 mm |
| Number of Rows | 1 |
| Width | 17 mm |
| Load Capacity | 3147 lbf Dynamic, 1764 lbf Static |
| Closure Type | Double Sealed |
| Bearing Material | Alloy Steel |
| Seal Material | Rubber |
| Temperature Rating | -40 to 250 deg F |
| Finish | Black Oxide |
| Locking Device | Eccentric Collar |
