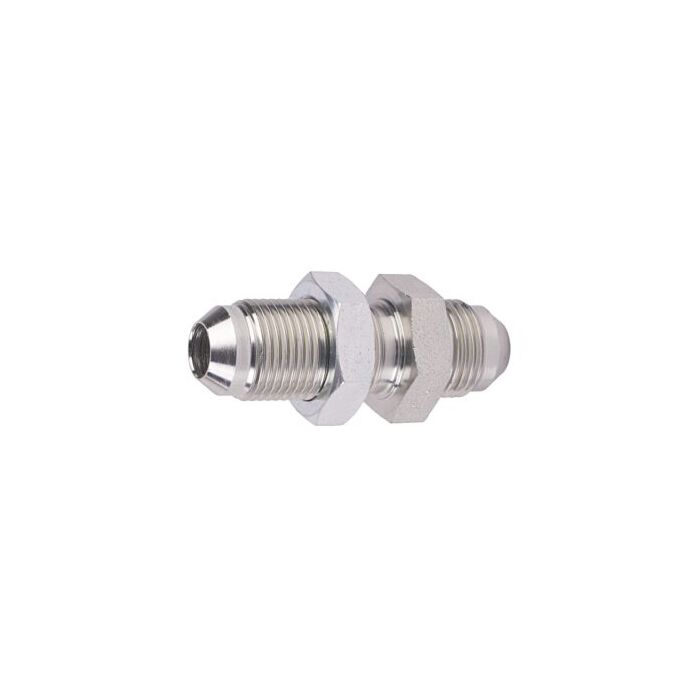

JIC Bulkhead Union with Locknut MJIC
JIC Bulkhead Union with Locknut 3/8 MJIC
JIC Bulkhead Union with Locknut 1/2 MJIC
JIC Bulkhead Union with Locknut 5/8 MJIC
JIC Bulkhead Union with Locknut 3/4 MJIC
JIC Bulkhead Union with Locknut 1 MJIC
SKU: 2700-
SKU: 2700LN0606
SKU: 2700LN0808
SKU: 2700LN1010
SKU: 2700LN1212
SKU: 2700LN1616
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$2.97
As low as:
Features
Specifications
JIC Bulkhead Union with Locknut 3/8 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
- With Locknut
JIC Bulkhead Union with Locknut 3/8 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
- With Locknut
JIC Bulkhead Union with Locknut 1/2 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
- With Locknut
JIC Bulkhead Union with Locknut 5/8 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
- With Locknut
JIC Bulkhead Union with Locknut 3/4 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
- With Locknut
JIC Bulkhead Union with Locknut 1 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
- With Locknut
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.60" |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 9/16 in-18 MJIC |
| Size | 3/8 in |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Hex Size | 13/16 in |
| Length | 2.18 in |
| Assembled Size | 1.28 in |
| Diameter | 0.56 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.60" |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 9/16 in-18 MJIC |
| Size | 3/8 in |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Hex Size | 13/16 in |
| Length | 2.18 in |
| Assembled Size | 1.28 in |
| Diameter | 0.56 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 3/4 in-16 MJIC |
| Size | 1/2 in |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Hex Size | 1 in |
| Length | 2.44 in |
| Assembled Size | 1.44 in |
| Diameter | 3/4 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 3.00" |
| Package Height (in) | 0.60" |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 MJIC |
| Thread Size 2 | 7/8 in-14 MJIC |
| Size | 5/8 in |
| Material | Carbon Steel |
| Pressure Rating | 5000 psi |
| Hex Size | 1-1/8 in |
| Length | 2.74 in |
| Assembled Size | 1.58 in |
| Diameter | 0.88 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 3.20" |
| Package Height (in) | 1.20" |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MJIC |
| Thread Size 2 | 1-1/16 in-12 MJIC |
| Size | 3/4 in |
| Material | Carbon Steel |
| Pressure Rating | 5000 psi |
| Hex Size | 1-3/8 in |
| Length | 3.09 in |
| Assembled Size | 1-3/4 in |
| Diameter | 1.06 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 1.00" |
| Tube OD | 1 in |
| Thread Size 1 | 1-5/16 in-12 MJIC |
| Thread Size 2 | 1-5/16 in-12 MJIC |
| Size | 1 in |
| Material | Carbon Steel |
| Pressure Rating | 4000 psi |
| Hex Size | 1-5/8 in |
| Length | 3.14 in |
| Assembled Size | 1-3/4 in |
| Diameter | 1.31 in |
