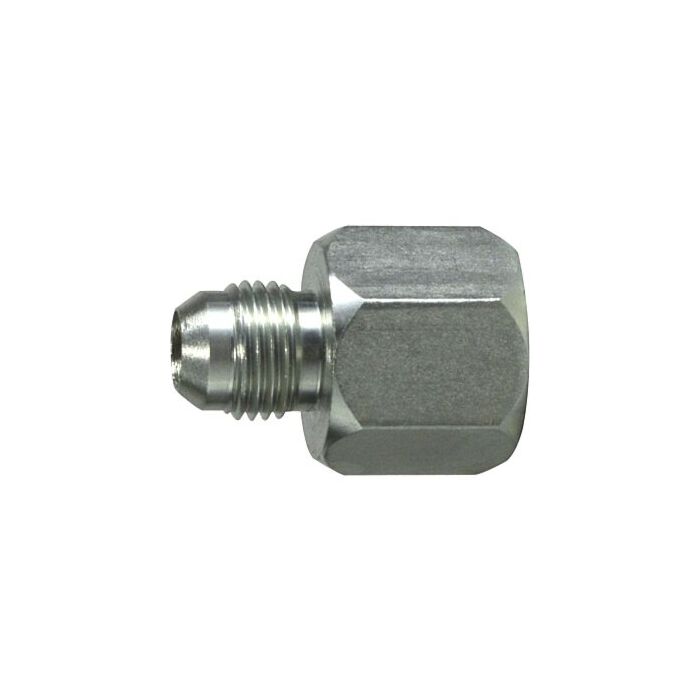

JIC Reducer/Expander
JIC Reducer/Expander 1/4 FJIC x 3/8 MJIC
JIC Reducer/Expander 3/8 FJIC x 1/4 MJIC
JIC Reducer/Expander 1/2 FJIC x 3/8 MJIC
JIC Reducer/Expander 5/8 FJIC x 1/2 MJIC
JIC Reducer/Expander 3/4 FJIC x 1/2 MJIC
SKU: 2406-
SKU: 2406X0406
SKU: 2406X0604
SKU: 2406X0806
SKU: 2406X1008
SKU: 2406X1208
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$1.80
As low as:
Features
Specifications
JIC Reducer/Expander 1/4 FJIC x 3/8 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Reducer/Expander 1/4 FJIC x 3/8 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Reducer/Expander 3/8 FJIC x 1/4 MJIC
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC Reducer/Expander 1/2 FJIC x 3/8 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Reducer/Expander 5/8 FJIC x 1/2 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Reducer/Expander 3/4 FJIC x 1/2 MJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X4 |
|---|---|
| Package Length (in) | 0.80" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.20" |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 FJIC |
| Thread Size 2 | 9/16 in-18 MJIC |
| Size | 3/8 in |
| Material | Carbon Steel |
| Hex Size | 9/16 in |
| Length | 1 in |
| Pressure Rating | 6000 psi |
| Store Location (Lititz, PA) | Aisle 06, Section X4 |
|---|---|
| Package Length (in) | 0.80" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.20" |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 FJIC |
| Thread Size 2 | 9/16 in-18 MJIC |
| Size | 3/8 in |
| Material | Carbon Steel |
| Hex Size | 9/16 in |
| Length | 1 in |
| Pressure Rating | 6000 psi |
| Store Location (Lititz, PA) | Aisle 06, Section X4 |
|---|---|
| Package Length (in) | 0.60" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.20" |
| Material | Steel |
| Shape | Expander |
| Male Jic Thread Size 2 | 7/16-20 |
| Weight | 0.06 lbs |
| Female Jic Thread Size 1 | 9/16-18 |
| Store Location (Lititz, PA) | Aisle 06, Section X4 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 FJIC |
| Thread Size 2 | 9/16 in-18 MJIC |
| Size | 3/8 in |
| Material | Carbon Steel |
| Hex Size | 7/8 in |
| Length | 1.31 in |
| Pressure Rating | 6000 psi |
| Store Location (Lititz, PA) | Aisle 06, Section X4 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.60" |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 FJIC |
| Thread Size 2 | 3/4 in-16 Male JIC |
| Size | 1/2 in |
| Material | Carbon Steel |
| Hex Size | 1 in |
| Length | 1.49 in |
| Pressure Rating | 5000 psi |
| Store Location (Lititz, PA) | Aisle 06, Section X4 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.80" |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 FJIC |
| Thread Size 2 | 3/4 in-16 Male JIC |
| Size | 1/2 in |
| Material | Carbon Steel |
| Hex Size | 1-1/4 in |
| Length | 1.63 in |
| Pressure Rating | 5000 psi |
