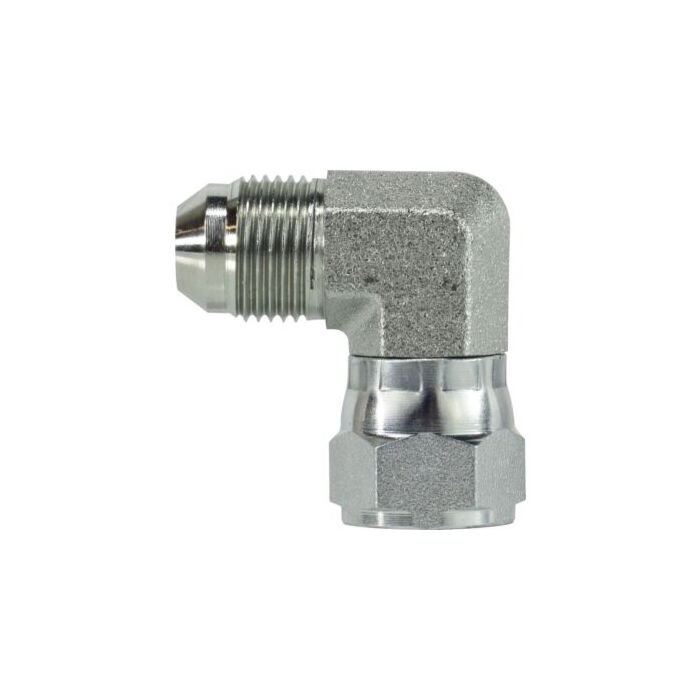

JIC Swivel Elbow 90° FJIC
JIC Swivel Elbow 90° 1/4 FJIC
JIC Swivel Elbow 90° 5/16 FJIC
JIC Swivel Elbow 90° 3/8 FJIC
JIC Swivel Elbow 90° 1/2 FJIC
JIC Swivel Elbow 90° 5/8 FJIC
JIC Swivel Elbow 90° 3/4 FJIC
JIC Swivel Elbow 90° 1 FJIC
SKU: 6500-
SKU: 6500X0404
SKU: 6500X0505
SKU: 6500X0606
SKU: 6500X0808
SKU: 6500X1010
SKU: 6500X1212
SKU: 6500X1616
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$2.33
As low as:
Features
Specifications
JIC Swivel Elbow 90° 1/4 FJIC
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC Swivel Elbow 90° 1/4 FJIC
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC Swivel Elbow 90° 5/16 FJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Swivel Elbow 90° 3/8 FJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Swivel Elbow 90° 1/2 FJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Swivel Elbow 90° 5/8 FJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Swivel Elbow 90° 3/4 FJIC
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC Swivel Elbow 90° 1 FJIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X2 |
|---|---|
| Package Length (in) | 0.80" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.20" |
| Material | Steel |
| Shape | 90 degree elbow |
| Jic Thread Size 2 | 7/16-20 |
| Weight | 0.06 lbs |
| Jic Thread Size | 7/16-20 |
| Store Location (Lititz, PA) | Aisle 06, Section X2 |
|---|---|
| Package Length (in) | 0.80" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.20" |
| Material | Steel |
| Shape | 90 degree elbow |
| Jic Thread Size 2 | 7/16-20 |
| Weight | 0.06 lbs |
| Jic Thread Size | 7/16-20 |
| Store Location (Lititz, PA) | Aisle 06, Section X2 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.40" |
| Type | 90 deg Street |
| Tube OD | 5/16 in |
| Thread Size 1 | 1/2 in-20 MJIC |
| Thread Size 2 | 1/2 in-20 FJIC Swivel |
| Size | 5/16 in |
| Nut Hex Size 1 | 11/16 in |
| Length 1 | 0.95 in |
| Length 2 | 1.06 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X2 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 2.20" |
| Package Height (in) | 0.20" |
| Type | 90 deg Street |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 9/16 in-18 FJIC Swivel |
| Size | 3/8 in |
| Nut Hex Size 1 | 11/16 in |
| Length 1 | 1.06 in |
| Length 2 | 1-1/4 in |
| Flats | 9/16 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X2 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 2.00" |
| Package Height (in) | 0.40" |
| Type | 90 deg Street |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 3/4 in-16 FJIC Swivel |
| Size | 1/2 in |
| Nut Hex Size 1 | 7/8 in |
| Length 1 | 1-1/4 in |
| Length 2 | 1.38 in |
| Flats | 3/4 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X2 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 2.40" |
| Package Height (in) | 0.40" |
| Type | 90 deg Street |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 MJIC |
| Thread Size 2 | 7/8 in-14 FJIC Swivel |
| Size | 5/8 in |
| Nut Hex Size 1 | 1 in |
| Length 1 | 1.45 in |
| Length 2 | 1.62 in |
| Flats | 7/8 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X2 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 3.60" |
| Package Height (in) | 0.60" |
| Material | Steel |
| Shape | 90 degree elbow |
| Jic Thread Size 2 | 1-1/16-12 |
| Weight | 0.54 lbs |
| Jic Thread Size | 1-1/16-12 |
| Store Location (Lititz, PA) | Aisle 06, Section X2 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 3.40" |
| Package Height (in) | 1.00" |
| Type | 90 deg Street |
| Tube OD | 1 in |
| Thread Size 1 | 1-5/16 in-12 MJIC |
| Thread Size 2 | 1-5/16 in-12 FJIC Swivel |
| Size | 1 in |
| Nut Hex Size 1 | 1-1/2 in |
| Length 1 | 1.81 in |
| Length 2 | 2 in |
| Flats | 1-5/16 in |
| Pressure Rating | 3600 psi |
| Material | Carbon Steel |
