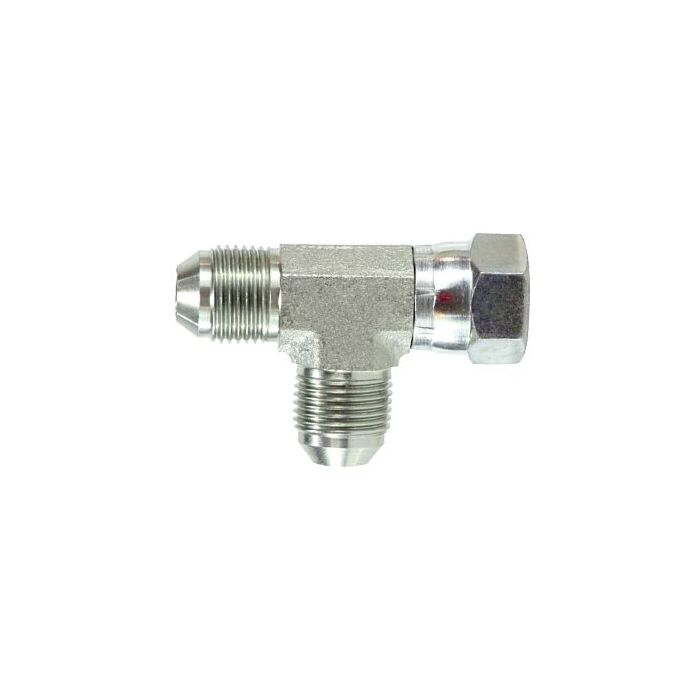

JIC Swivel Run Tee
JIC Swivel Run Tee 1/4 JIC
JIC Swivel Run Tee 3/8 JIC
JIC Swivel Run Tee 1/2 JIC
JIC Swivel Run Tee 5/8 JIC
JIC Swivel Run Tee 3/4 JIC
SKU: 6602-
SKU: 6602X040404
SKU: 6602X060606
SKU: 6602X080808
SKU: 6602X101010
SKU: 6602X121212
As low as:
$4.24
As low as:
Features
Specifications
JIC Swivel Run Tee 1/4 JIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Swivel Run Tee 1/4 JIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Swivel Run Tee 3/8 JIC
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC Swivel Run Tee 1/2 JIC
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC Swivel Run Tee 5/8 JIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC Swivel Run Tee 3/4 JIC
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 7/16 in-20 FJIC Swivel |
| Thread Size 3 | 7/16 in-20 MJIC |
| Material | Carbon Steel |
| Pressure Rating | 7500 psi |
| Flats | 7/16 in |
| Length 1 | 0.89 in |
| Length 2 | 0.89 in |
| Length 3 | 1 in |
| Nut Hex Size | 9/16 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 7/16 in-20 FJIC Swivel |
| Thread Size 3 | 7/16 in-20 MJIC |
| Material | Carbon Steel |
| Pressure Rating | 7500 psi |
| Flats | 7/16 in |
| Length 1 | 0.89 in |
| Length 2 | 0.89 in |
| Length 3 | 1 in |
| Nut Hex Size | 9/16 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.20" |
| Jic Thread Size 13 | 9/16-18 |
| Shape | Tee |
| Jic Female Thread 2 | 9/16-18 |
| Weight | 0.14 lbs |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Jic Thread Size 13 | 3/4-16 |
| Shape | Tee |
| Jic Female Thread 2 | 3/4-16 |
| Weight | 0.28 lbs |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.40" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.80" |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 MJIC |
| Thread Size 2 | 7/8 in-14 FJIC Swivel |
| Thread Size 3 | 7/8 in-14 MJIC |
| Material | Carbon Steel |
| Pressure Rating | 5000 psi |
| Flats | 7/8 in |
| Length 1 | 1.45 in |
| Length 2 | 1.45 in |
| Length 3 | 1.62 in |
| Nut Hex Size | 1 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.20" |
| Package Width (in) | 2.80" |
| Package Height (in) | 1.00" |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MJIC |
| Thread Size 2 | 1-1/16 in-12 FJIC Swivel |
| Thread Size 3 | 1-1/16 in-12 MJIC |
| Material | Carbon Steel |
| Pressure Rating | 5000 psi |
| Flats | 1-1/16 in |
| Length 1 | 1.66 in |
| Length 2 | 1.66 in |
| Length 3 | 1-3/4 in |
| Nut Hex Size | 1-1/4 in |
