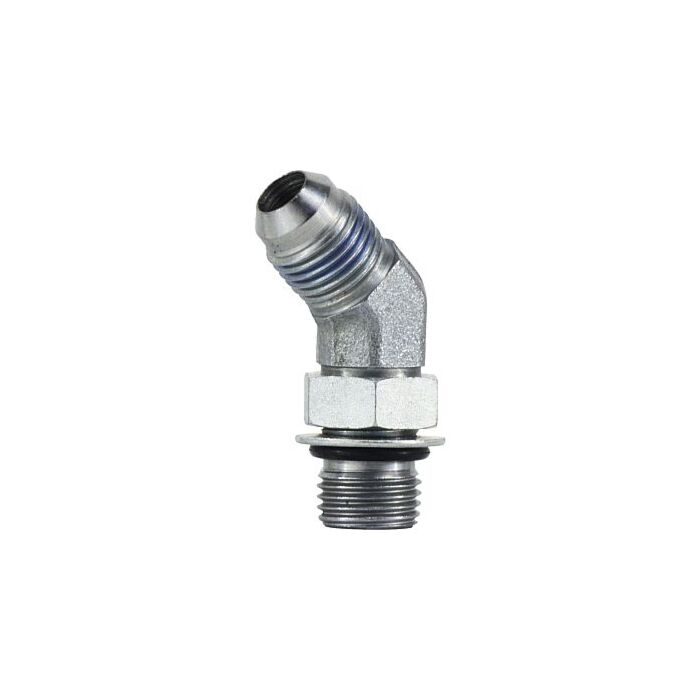

JIC to ORB Elbow 45° MJIC x MORB
JIC to ORB Elbow 45° 1 MJIC x 1 MORB
JIC to ORB Elbow 45° 3/4 MJIC x 3/4 MORB
JIC to ORB Elbow 45° 5/8 MJIC x 1/2 MORB
JIC to ORB Elbow 45° 3/8 MJIC x 3/8 MORB
JIC to ORB Elbow 45° 3/8 MJIC x 1/2 MORB
JIC to ORB Elbow 45° 1/2 MJIC x 5/8 MORB
JIC to ORB Elbow 45° 1/4 MJIC x 1/4 MORB
JIC to ORB Elbow 45° 3/4 MJIC x 5/8 MORB
JIC to ORB Elbow 45° 1/4 MJIC x 3/8 MORB
JIC to ORB Elbow 45° 1/2 MJIC x 1/2 MORB
JIC to ORB Elbow 45° 5/8 MJIC x 5/8 MORB
JIC to ORB Elbow 45° 1/2 MJIC x 3/8 MORB
SKU: 6802-
SKU: 6802X1616
SKU: 6802X1212
SKU: 6802X1008
SKU: 6802X0606
SKU: 6802X0608
SKU: 6802X0810
SKU: 6802X0404
SKU: 6802X1210
SKU: 6802X0406
SKU: 6802X0808
SKU: 6802X1010
SKU: 6802X0806
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$2.49
As low as:
Features
Specifications
JIC to ORB Elbow 45° 1 MJIC x 1 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 1 MJIC x 1 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 3/4 MJIC x 3/4 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 5/8 MJIC x 1/2 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 3/8 MJIC x 3/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 3/8 MJIC x 1/2 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 1/2 MJIC x 5/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 1/4 MJIC x 1/4 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 3/4 MJIC x 5/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 1/4 MJIC x 3/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 1/2 MJIC x 1/2 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 5/8 MJIC x 5/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 45° 1/2 MJIC x 3/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.00" |
| Package Width (in) | 1.40" |
| Package Height (in) | 1.40" |
| Type | 45 deg |
| Tube OD | 1 in |
| Thread Size 1 | 1-5/16 in-12 MJIC |
| Thread Size 2 | 1-5/16 in-12 MORB |
| Size | 1 in |
| Nut Hex Size 1 | 1-1/2 in |
| Length 1 | 1.47 in |
| Length 2 | 1.86 in |
| Flats | 1-5/16 in |
| Pressure Rating | 4000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.00" |
| Package Width (in) | 1.40" |
| Package Height (in) | 1.40" |
| Type | 45 deg |
| Tube OD | 1 in |
| Thread Size 1 | 1-5/16 in-12 MJIC |
| Thread Size 2 | 1-5/16 in-12 MORB |
| Size | 1 in |
| Nut Hex Size 1 | 1-1/2 in |
| Length 1 | 1.47 in |
| Length 2 | 1.86 in |
| Flats | 1-5/16 in |
| Pressure Rating | 4000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.00" |
| Type | 45 deg |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MJIC |
| Thread Size 2 | 1-1/16 in-12 MORB |
| Size | 3/4 in |
| Nut Hex Size 1 | 1-1/4 in |
| Length 1 | 1.28 in |
| Length 2 | 1.73 in |
| Flats | 1-1/16 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.60" |
| Type | 45 deg |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 MJIC |
| Thread Size 2 | 3/4 in-16 MORB |
| Size | 1/2 in |
| Nut Hex Size 1 | 7/8 in |
| Length 1 | 1.11 in |
| Length 2 | 1.36 in |
| Flats | 7/8 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 0.60" |
| Package Height (in) | 0.40" |
| Type | 45 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 9/16 in-18 MORB |
| Size | 3/8 in |
| Nut Hex Size 1 | 11/16 in |
| Length 1 | 0.83 in |
| Length 2 | 1.14 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Type | 45 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 9/16 in-18 MORB |
| Size | 1/2 in |
| Nut Hex Size 1 | 11/16 in |
| Length 1 | 0.83 in |
| Length 2 | 1.14 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.40" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.40" |
| Type | 45 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 7/8 in-14 MORB |
| Size | 5/8 in |
| Nut Hex Size 1 | 1 in |
| Length 1 | 1 in |
| Length 2 | 1.52 in |
| Flats | 7/8 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Type | 45 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 7/16 in-20 MORB |
| Size | 1/4 in |
| Nut Hex Size 1 | 9/16 in |
| Length 1 | 0.72 in |
| Length 2 | 1.05 in |
| Flats | 7/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.80" |
| Type | 45 deg |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MJIC |
| Thread Size 2 | 7/8 in-14 MORB |
| Size | 5/8 in |
| Nut Hex Size 1 | 1 in |
| Length 1 | 1.28 in |
| Length 2 | 1.58 in |
| Flats | 1-1/16 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.20" |
| Type | 45 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 9/16 in-18 MORB |
| Size | 3/8 in |
| Nut Hex Size 1 | 11/16 in |
| Length 1 | 0.82 in |
| Length 2 | 1.14 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.60" |
| Type | 45 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 3/4 in-16 MORB |
| Size | 1/2 in |
| Nut Hex Size 1 | 7/8 in |
| Length 1 | 0.98 in |
| Length 2 | 1.3 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Type | 45 deg |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 MJIC |
| Thread Size 2 | 7/8 in-14 MORB |
| Size | 5/8 in |
| Nut Hex Size 1 | 1 in |
| Length 1 | 1.11 in |
| Length 2 | 1.52 in |
| Flats | 7/8 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.40" |
| Type | 45 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 9/16 in-18 MORB |
| Size | 3/8 in |
| Nut Hex Size 1 | 11/16 in |
| Length 1 | 0.98 in |
| Length 2 | 1.09 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
