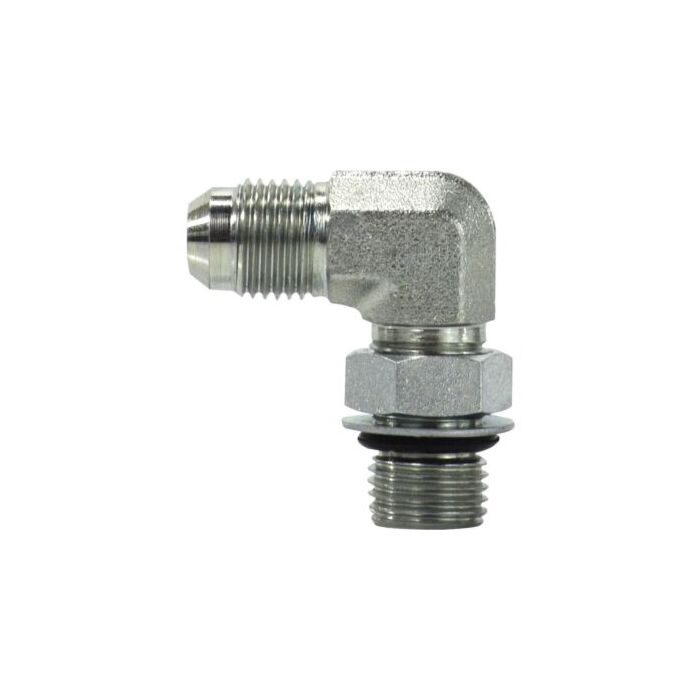

JIC to ORB Elbow 90° MJIC x MORB
JIC to ORB Elbow 90° 5/16 MJIC x 5/16 MORB
JIC to ORB Elbow 90° 5/8 MJIC x 5/8 MORB
JIC to ORB Elbow 90° 5/8 MJIC x 3/4 MORB
JIC to ORB Elbow 90° 3/8 MJIC x 3/8 MORB
JIC to ORB Elbow 90° 5/8 MJIC x 1/2 MORB
JIC to ORB Elbow 90° 3/4 MJIC x 5/8 MORB
JIC to ORB Elbow 90° 1/2 MJIC x 1/2 MORB
JIC to ORB Elbow 90° 3/4 MJIC x 3/4 MORB
JIC to ORB Elbow 90° 1/2 MJIC x 5/8 MORB
JIC to ORB Elbow 90° 1 MJIC x 1 MORB
JIC to ORB Elbow 90° 3/8 MJIC x 1/2 MORB
JIC to ORB Elbow 90° 1/2 MJIC x 3/8 MORB
JIC to ORB Elbow 90° 1/4 MJIC x 1/4 MORB
JIC to ORB Elbow 90° 1/4 MJIC x 3/8 MORB
SKU: 6801-
SKU: 6801X0505
SKU: 6801X1010
SKU: 6801X1012
SKU: 6801X0606
SKU: 6801X1008
SKU: 6801X1210
SKU: 6801X0808
SKU: 6801X1212
SKU: 6801X0810
SKU: 6801X1616
SKU: 6801X0608
SKU: 6801X0806
SKU: 6801X0404
SKU: 6801X0406
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$2.33
As low as:
Features
Specifications
JIC to ORB Elbow 90° 5/16 MJIC x 5/16 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 5/16 MJIC x 5/16 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 5/8 MJIC x 5/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 5/8 MJIC x 3/4 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 3/8 MJIC x 3/8 MORB
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to ORB Elbow 90° 5/8 MJIC x 1/2 MORB
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to ORB Elbow 90° 3/4 MJIC x 5/8 MORB
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to ORB Elbow 90° 1/2 MJIC x 1/2 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 3/4 MJIC x 3/4 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 1/2 MJIC x 5/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 1 MJIC x 1 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 3/8 MJIC x 1/2 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 1/2 MJIC x 3/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 1/4 MJIC x 1/4 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
JIC to ORB Elbow 90° 1/4 MJIC x 3/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 5/16 in |
| Thread Size 1 | 1/2 in-20 MJIC |
| Thread Size 2 | 1/2 in-20 MORB |
| Size | 5/16 in |
| Nut Hex Size 1 | 5/8 in |
| Length 1 | 0.95 in |
| Length 2 | 1.13 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 5/16 in |
| Thread Size 1 | 1/2 in-20 MJIC |
| Thread Size 2 | 1/2 in-20 MORB |
| Size | 5/16 in |
| Nut Hex Size 1 | 5/8 in |
| Length 1 | 0.95 in |
| Length 2 | 1.13 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.40" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 MJIC |
| Thread Size 2 | 7/8 in-14 MORB |
| Size | 5/8 in |
| Nut Hex Size 1 | 1 in |
| Length 1 | 1.45 in |
| Length 2 | 1.7 in |
| Flats | 7/8 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.40" |
| Package Width (in) | 2.20" |
| Package Height (in) | 1.00" |
| Type | 90 deg |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 MJIC |
| Thread Size 2 | 1-1/16 in-12 MORB |
| Size | 3/4 in |
| Nut Hex Size 1 | 1-1/4 in |
| Length 1 | 1.54 in |
| Length 2 | 1.94 in |
| Flats | 1-1/16 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Shape | 90 degree elbow |
| Oring Thread 2 | 9/16-18 |
| Weight | 0.12 lbs |
| Jic Thread Size | 9/16-18 |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 2.20" |
| Package Height (in) | 0.60" |
| Material | Steel |
| Shape | 90 degree elbow |
| Oring Thread 2 | 3/4-16 |
| Weight | 0.34 lbs |
| Jic Thread Size | 7/8-14 |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 1.80" |
| Package Height (in) | 1.00" |
| Material | Steel |
| Shape | 90 degree elbow |
| Oring Thread 2 | 7/8-14 |
| Weight | 0.7 lbs |
| Jic Thread Size | 1-1/16-12 |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.60" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 3/4 in-16 MORB |
| Size | 1/2 in |
| Nut Hex Size 1 | 7/8 in |
| Length 1 | 1-1/4 in |
| Length 2 | 1.45 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.40" |
| Package Width (in) | 2.40" |
| Package Height (in) | 1.00" |
| Type | 90 deg |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MJIC |
| Thread Size 2 | 1-1/16 in-12 MORB |
| Size | 3/4 in |
| Nut Hex Size 1 | 1-1/4 in |
| Length 1 | 1.66 in |
| Length 2 | 1.94 in |
| Flats | 1-1/16 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 0.40" |
| Package Width (in) | 1.00" |
| Package Height (in) | 2.40" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 7/8 in-14 MORB |
| Size | 5/8 in |
| Nut Hex Size 1 | 1 in |
| Length 1 | 1.34 in |
| Length 2 | 1.7 in |
| Flats | 7/8 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 2.40" |
| Package Height (in) | 1.40" |
| Type | 90 deg |
| Tube OD | 1 in |
| Thread Size 1 | 1-5/16 in-12 MJIC |
| Thread Size 2 | 1-5/16 in-12 MORB |
| Size | 1 in |
| Nut Hex Size 1 | 1-1/2 in |
| Length 1 | 1.81 in |
| Length 2 | 2.05 in |
| Flats | 1-5/16 in |
| Pressure Rating | 4000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.00" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 3/4 in-16 MORB |
| Size | 1/2 in |
| Nut Hex Size 1 | 7/8 in |
| Length 1 | 1.14 in |
| Length 2 | 1.45 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.00" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 9/16 in-18 MORB |
| Size | 3/8 in |
| Nut Hex Size 1 | 11/16 in |
| Length 1 | 1-1/4 in |
| Length 2 | 1.32 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 7/16 in-20 MORB |
| Size | 1/4 in |
| Nut Hex Size 1 | 7/16 in |
| Length 1 | 0.78 in |
| Length 2 | 0.94 in |
| Flats | 7/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 0.60" |
| Package Height (in) | 0.20" |
| Type | 90 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 9/16 in-18 MORB |
| Size | 3/8 in |
| Nut Hex Size 1 | 11/16 in |
| Length 1 | 1.05 in |
| Length 2 | 1-1/4 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
