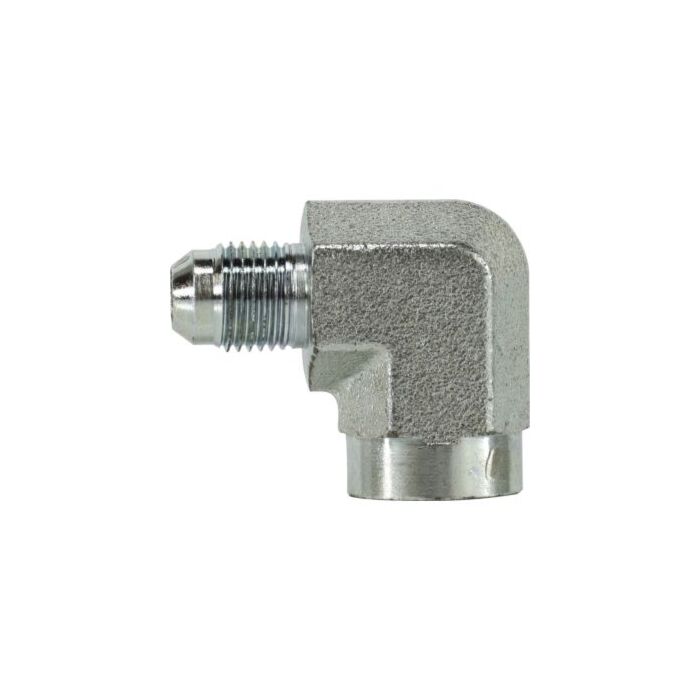

JIC to Pipe Elbow 90° MJIC X FPT
JIC to Pipe Elbow 90° 1/4 MJIC x 1/8 FPT
JIC to Pipe Elbow 90° 1/4 MJIC x 1/4 FPT
JIC to Pipe Elbow 90° 3/8 MJIC x 1/4 FPT
JIC to Pipe Elbow 90° 3/8 MJIC x 3/8 FPT
JIC to Pipe Elbow 90° 3/8 MJIC x 1/2 FPT
JIC to Pipe Elbow 90° 1/2 MJIC x 3/8 FPT
JIC to Pipe Elbow 90° 1/2 MJIC x 1/2 FPT
JIC to Pipe Elbow 90° 3/4 MJIC x 3/4 FPT
SKU: 2502-
SKU: 2502X0402
SKU: 2502X0404
SKU: 2502X0604
SKU: 2502X0606
SKU: 2502X0608
SKU: 2502X0806
SKU: 2502X0808
SKU: 2502X1212
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$1.96
As low as:
Features
Specifications
JIC to Pipe Elbow 90° 1/4 MJIC x 1/8 FPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 1/4 MJIC x 1/8 FPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 1/4 MJIC x 1/4 FPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 3/8 MJIC x 1/4 FPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 3/8 MJIC x 3/8 FPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 3/8 MJIC x 1/2 FPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 1/2 MJIC x 3/8 FPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 1/2 MJIC x 1/2 FPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 3/4 MJIC x 3/4 FPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.20" |
| Type | 90 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 1/8 in-27 FNPTF |
| Size | 1/8 in |
| Length 1 | 1.08 in |
| Length 2 | 0.66 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.20" |
| Type | 90 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 1/8 in-27 FNPTF |
| Size | 1/8 in |
| Length 1 | 1.08 in |
| Length 2 | 0.66 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.80" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.16 lbs |
| Jic Thread Size | 7/16-20 |
| Female Jic Thread Size 1 | 1/4 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.60" |
| Package Width (in) | 1.20" |
| Package Height (in) | 1.20" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 1/4 in-18 FNPTF |
| Size | 1/4 in |
| Length 1 | 1.23 in |
| Length 2 | 0.88 in |
| Flats | 3/4 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 3/8 in-18 FNPTF |
| Size | 3/8 in |
| Length 1 | 1.31 in |
| Length 2 | 1.02 in |
| Flats | 7/8 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.80" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.39 lbs |
| Jic Thread Size | 9/16-18 |
| Female Jic Thread Size 1 | 1/2 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 3/8 in-18 FNPTF |
| Size | 3/8 in |
| Length 1 | 1.42 in |
| Length 2 | 1.02 in |
| Flats | 7/8 in |
| Pressure Rating | 4500 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 2.00" |
| Package Height (in) | 0.80" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 1/2 in-14 FNPTF |
| Size | 1/2 in |
| Length 1 | 1.52 in |
| Length 2 | 1.23 in |
| Flats | 1-1/16 in |
| Pressure Rating | 3000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 2.20" |
| Package Height (in) | 1.20" |
| Type | 90 deg |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MJIC |
| Thread Size 2 | 3/4 in-14 FNPTF |
| Size | 3/4 in |
| Length 1 | 1.89 in |
| Length 2 | 1.36 in |
| Flats | 1-5/16 in |
| Pressure Rating | 3000 psi |
| Material | Carbon Steel |
