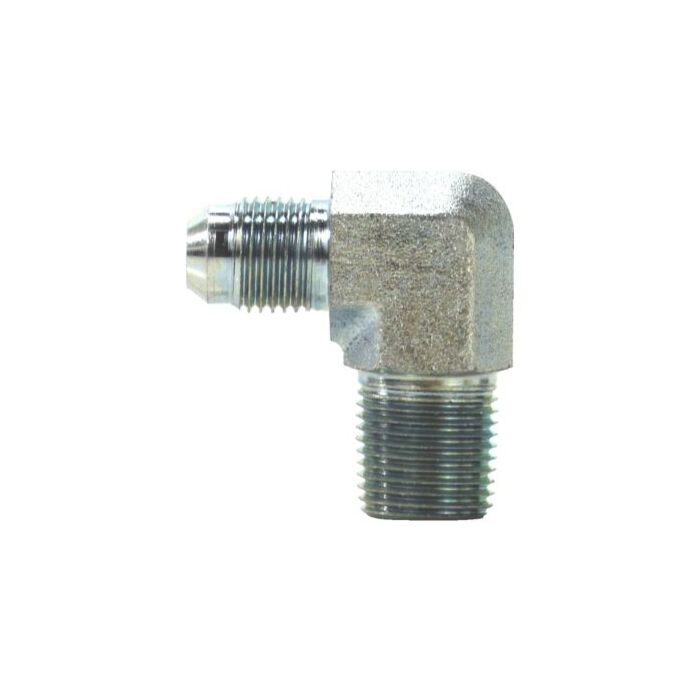

JIC to Pipe Elbow 90° MJIC X MPT
JIC to Pipe Elbow 90° 1/8 MJIC x 1/8 MPT
JIC to Pipe Elbow 90° 3/16 MJIC x 1/8 MPT
JIC to Pipe Elbow 90° 1/4 MJIC x 1/8 MPT
JIC to Pipe Elbow 90° 1/4 MJIC x 1/4 MPT
JIC to Pipe Elbow 90° 1/4 MJIC x 3/8 MPT
JIC to Pipe Elbow 90° 1/4 MJIC x 1/2 MPT
JIC to Pipe Elbow 90° 5/16 MJIC x 1/4 MPT
JIC to Pipe Elbow 90° 3/8 MJIC x 1/8 MPT
JIC to Pipe Elbow 90° 3/8 MJIC x 1/4 MPT
JIC to Pipe Elbow 90° 3/8 MJIC x 3/8 MPT
JIC to Pipe Elbow 90° 3/8 MJIC x 1/2 MPT
JIC to Pipe Elbow 90° 1/2 MJIC x 1/4 MPT
JIC to Pipe Elbow 90° 1/2 MJIC x 3/8 MPT
JIC to Pipe Elbow 90° 1/2 MJIC x 1/2 MPT
JIC to Pipe Elbow 90° 1/2 MJIC x 3/4 MPT
JIC to Pipe Elbow 90° 5/8 MJIC x 3/8 MPT
JIC to Pipe Elbow 90° 5/8 MJIC x 1/2 MPT
JIC to Pipe Elbow 90° 5/8 MJIC x 3/4 MPT
JIC to Pipe Elbow 90° 3/4 MJIC x 1/2 MPT
JIC to Pipe Elbow 90° 3/4 MJIC x 3/4 MPT
JIC to Pipe Elbow 90° 3/4 MJIC x 1 MPT
JIC to Pipe Elbow 90° 1 MJIC x 3/4 MPT
JIC to Pipe Elbow 90° 1 MJIC x 1 MPT
JIC to Pipe Elbow 90° 1 MJIC x 1-1/4 MPT
SKU: 2501-
SKU: 2501X0202
SKU: 2501X0302
SKU: 2501X0402
SKU: 2501X0404
SKU: 2501X0406
SKU: 2501X0408
SKU: 2501X0504
SKU: 2501X0602
SKU: 2501X0604
SKU: 2501X0606
SKU: 2501X0608
SKU: 2501X0804
SKU: 2501X0806
SKU: 2501X0808
SKU: 2501X0812
SKU: 2501X1006
SKU: 2501X1008
SKU: 2501X1012
SKU: 2501X1208
SKU: 2501X1212
SKU: 2501X1216
SKU: 2501X1612
SKU: 2501X1616
SKU: 2501X1620
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$1.96
As low as:
Features
Specifications
JIC to Pipe Elbow 90° 1/8 MJIC x 1/8 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 1/8 MJIC x 1/8 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 3/16 MJIC x 1/8 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 1/4 MJIC x 1/8 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 1/4 MJIC x 1/4 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 1/4 MJIC x 3/8 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 1/4 MJIC x 1/2 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 5/16 MJIC x 1/4 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 3/8 MJIC x 1/8 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 3/8 MJIC x 1/4 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 3/8 MJIC x 3/8 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 3/8 MJIC x 1/2 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 1/2 MJIC x 1/4 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 1/2 MJIC x 3/8 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 1/2 MJIC x 1/2 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 1/2 MJIC x 3/4 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 5/8 MJIC x 3/8 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 5/8 MJIC x 1/2 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 5/8 MJIC x 3/4 MPT
JIC to Pipe Elbow 90° 3/4 MJIC x 1/2 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
JIC to Pipe Elbow 90° 3/4 MJIC x 3/4 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 3/4 MJIC x 1 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 1 MJIC x 3/4 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 1 MJIC x 1 MPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
JIC to Pipe Elbow 90° 1 MJIC x 1-1/4 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.38" |
| Type | 90 deg |
| Tube OD | 1/8 in |
| Thread Size 1 | 5/16 in-24 MJIC |
| Thread Size 2 | 1/8 in-27 MNPTF |
| Size | 1/8 in |
| Length 1 | 0.77 in |
| Length 2 | 0.72 in |
| Flats | 7/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.38" |
| Type | 90 deg |
| Tube OD | 1/8 in |
| Thread Size 1 | 5/16 in-24 MJIC |
| Thread Size 2 | 1/8 in-27 MNPTF |
| Size | 1/8 in |
| Length 1 | 0.77 in |
| Length 2 | 0.72 in |
| Flats | 7/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.60" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.20" |
| Type | 90 deg |
| Tube OD | 3/16 in |
| Thread Size 1 | 3/8 in-24 MJIC |
| Thread Size 2 | 1/8 in-27 MNPTF |
| Size | 1/8 in |
| Length 1 | 0.83 in |
| Length 2 | 0.72 in |
| Flats | 7/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.06 lbs |
| Jic Thread Size | 7/16-20 |
| Male Pipe Size 2 | 1/8 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.80" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.1 lbs |
| Jic Thread Size | 7/16-20 |
| Male Pipe Size 2 | 1/4 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 3/8 in-18 MNPTF |
| Size | 3/8 in |
| Length 1 | 1.12 in |
| Length 2 | 1.22 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MJIC |
| Thread Size 2 | 1/2 in-14 MNPTF |
| Size | 1/2 in |
| Length 1 | 1.21 in |
| Length 2 | 1.47 in |
| Flats | 7/8 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.20" |
| Type | 90 deg |
| Tube OD | 5/16 in |
| Thread Size 1 | 1/2 in-20 MJIC |
| Thread Size 2 | 1/4 in-18 MNPTF |
| Size | 1/4 in |
| Length 1 | 1.05 in |
| Length 2 | 1.09 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 1/8 in-27 MNPTF |
| Size | 1/8 in |
| Length 1 | 1.06 in |
| Length 2 | 0.9 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.80" |
| Package Width (in) | 2.40" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MJIC |
| Thread Size 2 | 1/4 in-18 MNPTF |
| Size | 1/4 in |
| Length 1 | 1.06 in |
| Length 2 | 1.09 in |
| Flats | 9/16 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.17 lbs |
| Jic Thread Size | 9/16-18 |
| Male Pipe Size 2 | 3/8 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.25 lbs |
| Jic Thread Size | 9/16-18 |
| Male Pipe Size 2 | 1/2 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 1/4 in-18 MNPTF |
| Size | 1/4 in |
| Length 1 | 1-1/4 in |
| Length 2 | 1.22 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 2.00" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MJIC |
| Thread Size 2 | 3/8 in-18 MNPTF |
| Size | 3/8 in |
| Length 1 | 1-1/4 in |
| Length 2 | 1.22 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.60" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.28 lbs |
| Jic Thread Size | 3/4-16 |
| Male Pipe Size 2 | 1/2 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.80" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.4 lbs |
| Jic Thread Size | 3/4-16 |
| Male Pipe Size 2 | 3/4 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 2.00" |
| Package Height (in) | 0.60" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.28 lbs |
| Jic Thread Size | 7/8-14 |
| Male Pipe Size 2 | 3/8 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.60" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.32 lbs |
| Jic Thread Size | 7/8-14 |
| Male Pipe Size 2 | 1/2 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Thread Size 1 | 1 in-14 MJIC |
| Thread Size 2 | 3/4 in-14 MNPT |
| Material | Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.80" |
| Type | 90 deg |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MJIC |
| Thread Size 2 | 1/2 in-14 MNPTF |
| Size | 1/2 in |
| Length 1 | 1.66 in |
| Length 2 | 1.59 in |
| Flats | 1-1/16 in |
| Pressure Rating | 4000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 2.40" |
| Package Height (in) | 0.80" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.44 lbs |
| Jic Thread Size | 1-1/16-12 |
| Male Pipe Size 2 | 3/4 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 2.20" |
| Package Height (in) | 1.00" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.72 lbs |
| Jic Thread Size | 1-1/16-12 |
| Male Pipe Size 2 | 1 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 2.60" |
| Package Height (in) | 1.00" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.69 lbs |
| Jic Thread Size | 1-5/16-12 |
| Male Pipe Size 2 | 3/4 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 2.60" |
| Package Height (in) | 1.20" |
| Material | Steel |
| Shape | 90 degree elbow |
| Weight | 0.71 lbs |
| Jic Thread Size | 1-5/16-12 |
| Male Pipe Size 2 | 1 |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 2.60" |
| Package Height (in) | 2.60" |
| Type | 90 deg |
| Tube OD | 1 in |
| Thread Size 1 | 1-5/16 in-12 MJIC |
| Thread Size 2 | 1-1/4 in-11.5 MNPTF |
| Size | 1-1/4 in |
| Length 1 | 2.01 in |
| Length 2 | 2.38 in |
| Flats | 1-5/8 in |
| Pressure Rating | 2500 psi |
| Material | Carbon Steel |
