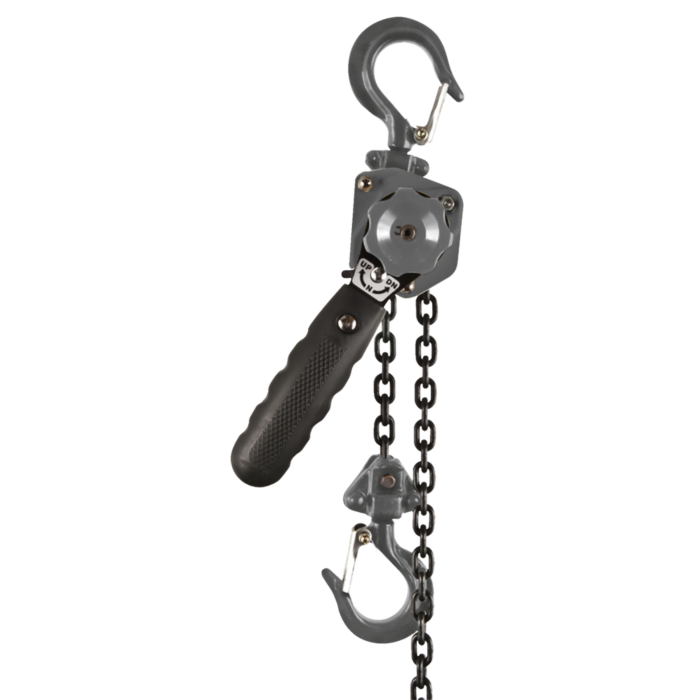

JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.
- Cast steel safety latches are secured with Allen screws and lock nuts
- Compact design with smaller body and lightweight design for low headroom applications and use in confined areas
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Impact resistant all steel construction for added durability and protection
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
- Needle bearing design increases efficiency and promotes smooth operation
- This product complies with ANSI / ASME B30.21 and HST-3 Impact resistant all steel construction for added durability and protection
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
Brand | JET Tools |
---|---|
UPC | 731325473001 |
Store Location (Lititz, PA) | Aisle 12 End Cap |
Package Length (in) | 8.20" |
Package Width (in) | 3.40" |
Package Height (in) | 4.20" |
Manufacturer Part Number | JT9-287100 |
Country of Origin | China |
Length | 10.05 |
Width | 3.1 |
Height | 2.44 |
Weight | 4.45 |
Warranty | Lifetime |
Headroom (in.) | 8-1/4 |
Capacity (Lbs.) | 500.0000 |
Lift (Ft.) | 5.0000 |
Load Capacity (Tons) | 1/4 |
Load Chain Dimensions dia/mm) | 4 x 12 |
Overload Protection | No |
Lever Length (in.) | 6 |
Lbs. of Pull to Lift Capacity | 60.0000 |
Ship Yard Hooks | NO |
