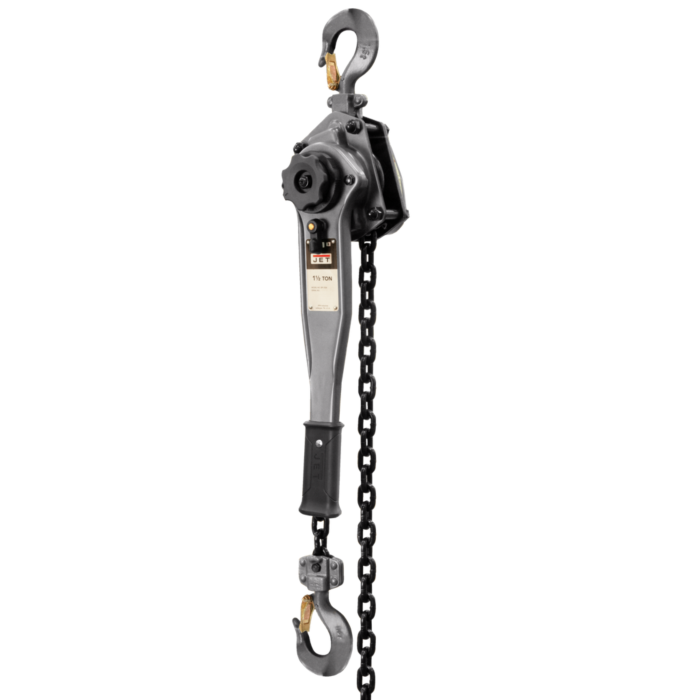

JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.
- Grade 80 black oxide coated load chain for added durability
- Impact resistant all steel construction for added durability and protection
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
- NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
Brand | JET Tools |
---|---|
UPC | 731325473100 |
Store Location (Lititz, PA) | Aisle 12 End Cap |
Package Length (in) | 20.20" |
Package Width (in) | 5.80" |
Package Height (in) | 7.80" |
Manufacturer Part Number | JT9-287400 |
Country of Origin | China |
Length | 23.62 |
Width | 7.03 |
Height | 6.37 |
Weight | 25.0 |
Warranty | Lifetime |
Headroom (in.) | 15 |
Capacity (Lbs.) | 3300.0000 |
Lift (Ft.) | 5.0000 |
Load Capacity (Tons) | 1-1/2 |
Load Chain Dimensions dia/mm) | 8 X 24 |
Overload Protection | No |
Lever Length (in.) | 16-1/7 |
Lbs. of Pull to Lift Capacity | 49.0000 |
Ship Yard Hooks | NO |
