Features
Specifications

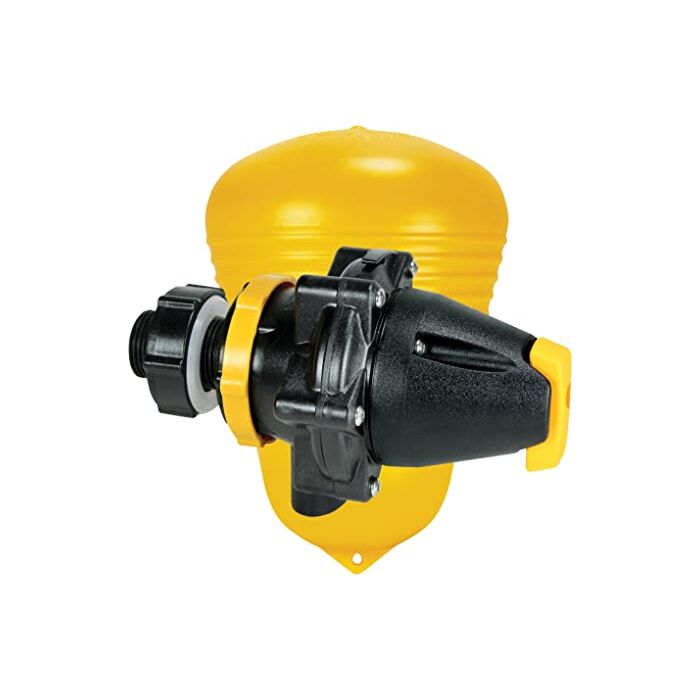

The megaflow is a good choice for high flow rate systems where an underwater mounted, compact, robust and non corrosive valve is needed. megaflow trough valves are float operated valves for use in automatic filling of water troughs. the valve is configured for underwater mounting only. the float is connected to the valve with a nylon cord, this operates a pilot valve, when the water level drops, the pilot valve is opened and the main diaphragm valve is activated. megaflow is a good choice where its high flow, compact, robust, non corrosive construction is beneficial.
- High flow
- Gf nylon
- Mounts under water only - protected from elements
- Pressure rating 5-150 psi
- Has longer threads and back nut to act as tank fitting (detach long tail)
- 1/4 turn removes the valve from its base
- High flow (up to 90 gpm)
| Brand | MegaFlow™ |
|---|---|
| UPC | 649998074602 |
| Store Location (Lititz, PA) | Aisle 12, Section S7 |
| Package Length (in) | 6.20" |
| Package Width (in) | 5.20" |
| Package Height (in) | 8.40" |
| Inlet Size | 3/4 in |
| Connection Type | NPT |
| Material | Glass Filled Nylon |
| Color | Yellow/Black |
| Pressure Rating | 5 - 100 psi |
| Flow Rate | 90 gpm |
