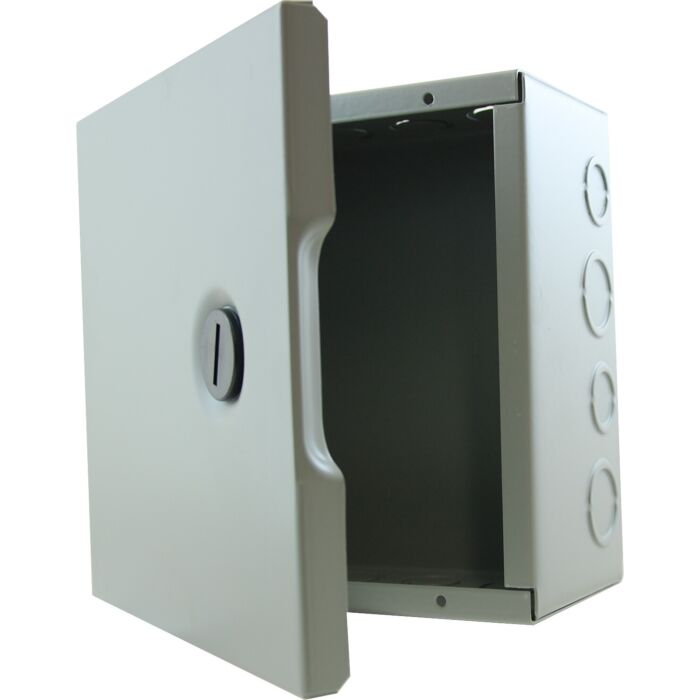

The 1100 E boxes are used as surface mounting junction boxes, switch boxes or general service boxes. Boxes and covers are made from 14 GA or 16 GA steel. Four internal mounting holes, a bonding screw and attachment are provided. All four sides have concentric knockouts, except as noted. Also available without knockouts (add suffix "N" to the catalog number). These boxes feature formed steel hinges, a ¼ turn lock and a formed handle to permit easy opening. The 1100 E is also available with a keylock option. Enclosures are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Box is ANSI/ASA 61 grey (other colors available). CSA Certified / UL Listed NEMA 1 / IP20.
| Brand | EXM |
|---|---|
| UPC | 717678005311 |
| Store Location (Lititz, PA) | Aisle 09, Section C2 |
| Package Length (in) | 4.00" |
| Package Width (in) | 8.20" |
| Package Height (in) | 8.20" |
| Type | Type E |
| Knockout Size | 1/2, 3/4, 1 in |
| NEMA Rating | NEMA 1 |
| Color | Gray |
| Width | 8 in |
| Depth | 4 in |
