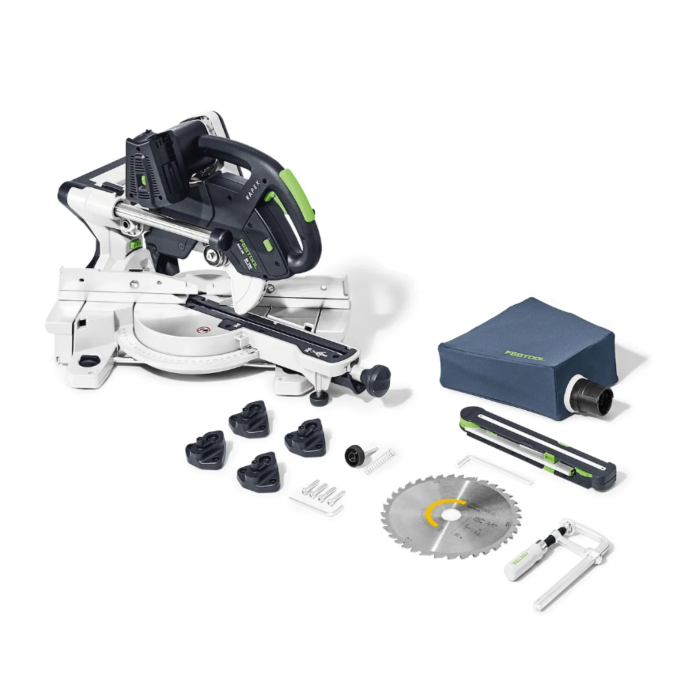

The new KAPEX KSC 60 cordless sliding compound miter saw produces unbeatably precise cross cuts – in an enormous range of applications with miter angles of up to 60° on each side and bevel angles of up to 46° & right 47° left. The twin-column guide with two bearings ensures that the saw blade is guided smoothly and with precision whichever setting is chosen: This makes every cut perfect, without wobble or deflection. In conjunction with the dual battery system, the brushless EC-TEC motor provides virtually unlimited endurance and is enough for all typical applications for an entire day's work. And finally, clever details such as the variable speed, saw blades for every application, bevel, ergonomic underframe, and dust bag create the utlimate experience in precision, durability, and performance.
Includes:
Saw blade, screw clamp (4-11/16"), LED Spotlight, angle transfer device, elevation feet, dust bag, & 6mm hex key.
- Twin-column guide with two bearings ensures that the saw blade is guided with smooth precision
- Miter angles of up to 60° on each side and bevel angles of up to 46° right and 47° left
- Brushless EC-TEC motor and dual battery system delivers maximum power
- Low weight, compact design, & convenient handles
- With saw blades for every material and variable speed to adapt to the material
- Dust collection bag for convenient capture
- Bevel for capturing and transferring interior and exterior angles
- LED spotlight for optimal visibility of the scribe mark
- Extension table for the stable support of longer workpieces
- Precise, clearly visible scale
- Use the locking positions for the pre-set angles or individually adjust an angle using the easy-to-use clamp
- Spindle stop enables the saw blade to be changed in next to no time
| Brand | Festool |
|---|---|
| Date Added | Dec 21, 2025 |
| Store Location (Lititz, PA) | Aisle 26, Section N4 |
| Package Length (in) | 29.53" |
| Package Width (in) | 21.26" |
| Package Height (in) | 19.69" |
| Manufacturer Part Number | 576848 |
| Country of Origin | Germany |
| Product Type | Tool |
| Weight | 38.14 lbs (17.30 kg) |
| Dimensions | (L x W x H) 25-5/32" x 18-1/16" x 17-13/32" (639.00 mm x 459.00 mm x 442.00 mm mm) |
| Drive Type | {Akku} |
| Battery Voltage | 2 x 18 V |
| Idle Engine Speed | 1300 - 1800/3500 RPM |
| Inclination Angle | 47/46 ° |
| Mitre Angle | 60/60 ° |
| Saw Blade Diameter | 8-1/2" (216 mm) |
| Dust Extraction Connection Diameter | 1-1/16" / 1-2/5" (27/36 mm) |
| Dimensions (L x W x H) | 25-5/32" x 18-1/16" x 17-13/32" (639 x 459 x 442 mm) |
| Cutting Depth 45°/90° | 8-15/32" x 2-3/8" (215 x 60 mm) |
| Cutting Height 90°/90° | 12" x 2-3/8" (305 x 60 mm ) |
| Cutting Depth 45°/45° (left) | 8-15/32" x 1-9/16" (215 x 40 mm) |
| Cutting Depth 45°/45° (right) | 8-15/32" x 25/32" (215 x 20 mm) |
| Cutting Depth 60°/90° | 5-29/32" x 2-3/8" (150 x 60 mm) |
