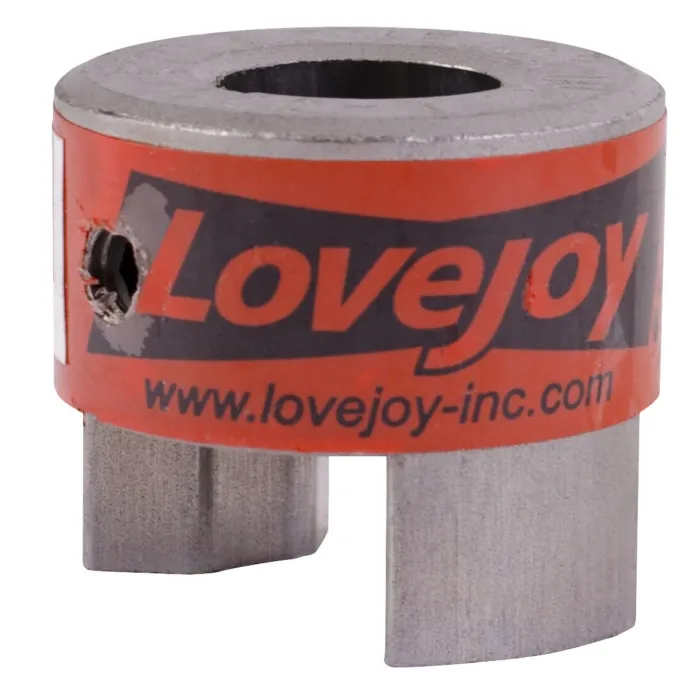

L070 5/8 in 3/4 in L-Type Jaw Coupling Hub
SKU: L070625
| Location: Aisle 10, Section W2
$10.99
3 In stock
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
Features
Specifications
Jaw Coupling Hub, L-Type, L070 Coupling, 5/8 in Bore Dia, 3/4 in Length Through Bore, 1.36 in Hub Dia, Sintered Iron, 1.23 in Hub Length, 3/16 x 3/32 in Keyway, 14000 rpm Maximum
- Coupling offers standard shaft-to-shaft connection for general industrial-duty applications
- Standard L-Type coupling hub materials are either sintered iron (L035-L190) or cast iron (L225-L276)
- Accommodates for angular and parallel shaft misalignment
- Fail-safe (will still perform if elastomeric "spider" fails)
- No metal-to-metal contact
- Resistant to oil, dirt, sand, moisture and grease
| Brand | Lovejoy |
|---|---|
| UPC | 068514410425 |
| Store Location (Lititz, PA) | Aisle 10, Section W2 |
| Package Length (in) | 4.40" |
| Package Width (in) | 2.20" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | 68514410424 |
| Type | L-Type |
| Coupling Size | L070 |
| Bore Diameter | 5/8 in |
| Length Through Bore | 3/4 in |
| Hub Diameter | 1.36 in |
| Material | Sintered Iron |
| Hub Length | 1.23 in |
| Keyway | 3/16 x 3/32 in |
| Maximum Speed | 14000 rpm |
