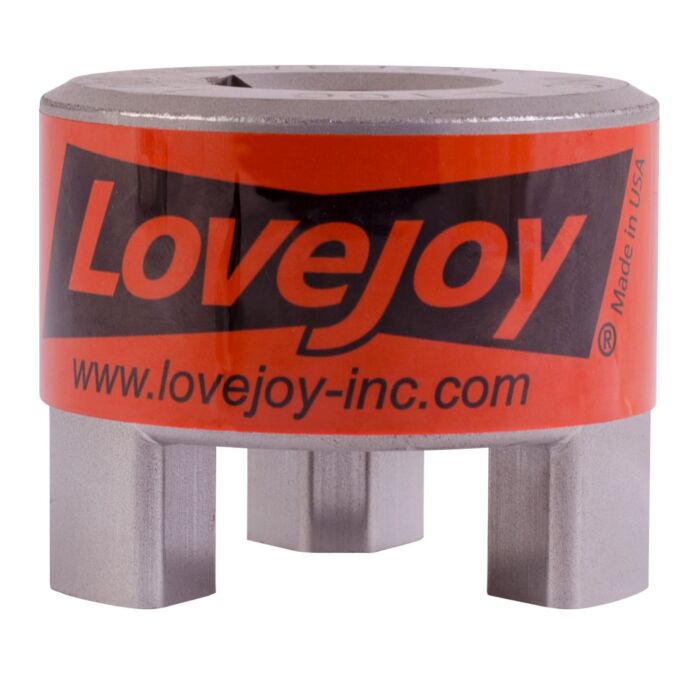

L100 1-1/4 in 1.38 in L-Type Jaw Coupling Hub
SKU: L1001250
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$52.99
Features
Specifications
Jaw Coupling Hub, L-Type, L100 Coupling, 1-1/4 in Bore Dia, 1.38 in Length Through Bore, 2.54 in Hub Dia, Sintered Iron, 2.09 in Hub Length, 1/4 x 1/8 in Keyway, 7000 rpm Maximum
- Coupling offers standard shaft-to-shaft connection for general industrial-duty applications
- Standard L-Type coupling hub materials are either sintered iron (L035-L190) or cast iron (L225-L276)
- Accommodates for angular and parallel shaft misalignment
- Fail-safe (will still perform if elastomeric "spider" fails)
- No metal-to-metal contact
- Resistant to oil, dirt, sand, moisture and grease
| Brand | Lovejoy |
|---|---|
| UPC | 685144115201 |
| Store Location (Lititz, PA) | Aisle 10, Section W2 |
| Package Length (in) | 1.00" |
| Package Width (in) | 0.80" |
| Package Height (in) | 2.40" |
| Manufacturer Part Number | 68514411520 |
| Type | L-Type |
| Coupling Size | L100 |
| Bore Diameter | 1-1/4 in |
| Length Through Bore | 1.38 in |
| Hub Diameter | 2.54 in |
| Material | Sintered Iron |
| Hub Length | 2.09 in |
| Keyway | 1/4 x 1/8 in |
| Maximum Speed | 7000 rpm |
