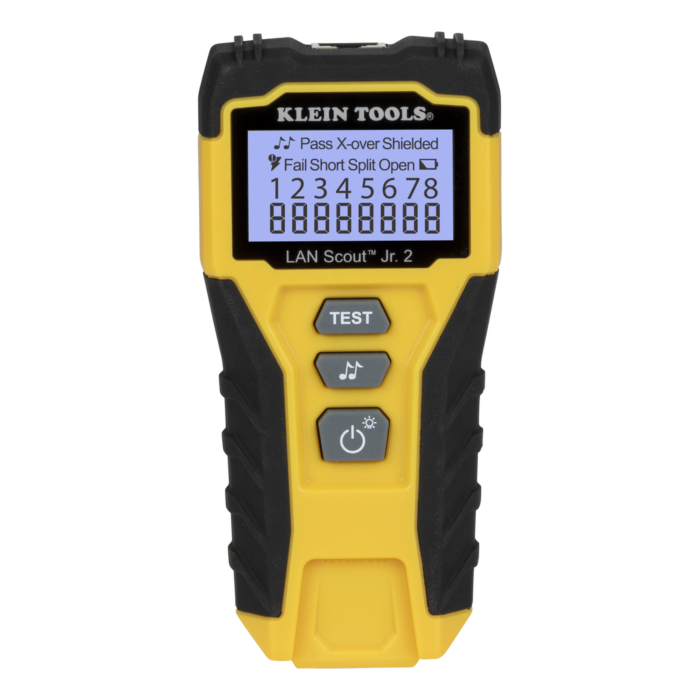

The LAN Scout® Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.
- Cable tester for data (RJ45) terminated cables and patch cords
- Large backlit LCD for low lit areas displays pin to pin wiremap results
- Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
- Intuitive user interface features three buttons with simple, easy-to-identify test responses
- Tone on single wire, wire pair or all 8 conductor wires
- Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
- Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
- Soft, slip-resistant, rugged overmold for easy gripping and durability
- Replaceable 2 x AAA batteries (included)
- Replaceable self-storing remote (included)
- Replacement remote available; sold separately (Cat. No. VDV999-200)
- Backlit LCD
- Always wear approved eye protection.
- Read all safety Information before using the product.
- Carefully read all instructions.
- Designed for use on unpowered/dark cable systems.
- Do NOT connect to live AC power.
- For indoor use only.
Brand | Klein Tools |
---|---|
Date Added | May 1, 2024 |
UPC | 092644583544 |
Store Location (Lititz, PA) | Aisle 09, Section C2 |
Package Length (in) | 5.00" |
Package Width (in) | 2.50" |
Package Height (in) | 1.00" |
Manufacturer Part Number | VDV526-200 |
Multiple Style Tone Generator | Yes |
Overall Width | 2.5" (6.4 cm) |
Overall Length | 5" (13 cm) |
Test & Measure Types | Data, RJ45 |
Faults Detected | Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield |
Drop Protection | 2' (0.6 m) |
Supported Remotes | (1) Self-Storing |
Included | Tester, Remote, 2 × AAA Alkaline Batteries |
Location ID | No |
Application | Cable Testing |
Connection & Adapter Types | RJ45 |
Battery Life | Active - 80 hr; Standby - 3 yr. |
Type | DATA, Voice, LAN |
Overall Height | 1" (2.5 cm) |
Display | LCD |
Batteries | 2 × AAA Alkaline |
Weight | 0.2720 lbs |
Test-n-Map ID Remotes | 1 |
Material | Plastic and Stamped Metal |
Cable Type | Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3 |
Height | 1.0000 in |
Width | 2.5000 in |
Depth | 5.2290 in |
