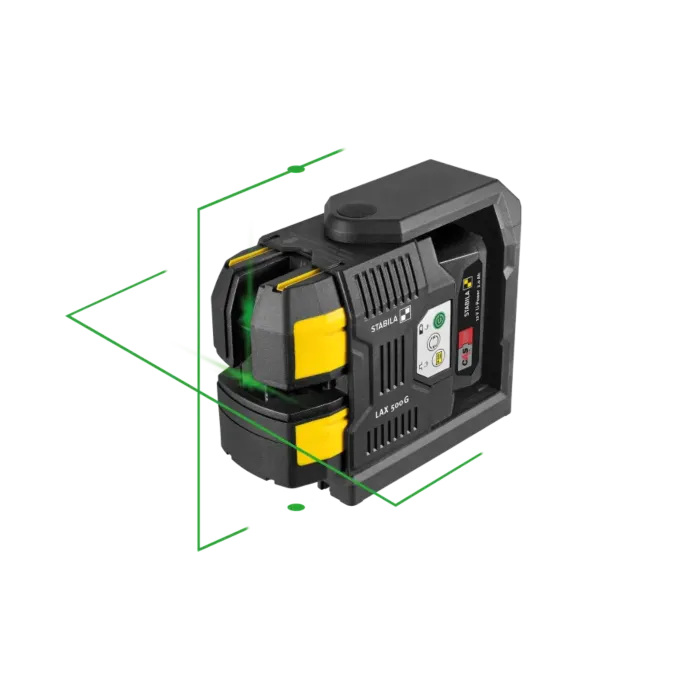

12V System LAX 500 G Cross-Line Plumb Laser
SKU: LAX500G
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$530.00
Features
Specifications
Downloads
Discover the powerful LAX 500 G, the cross-line laser with plumb dots and modern rechargeable battery technology. Benefit from the innovative technology of this professional laser: GREENBEAM technology means razor-sharp lines that enable you to transfer heights or align axes at a distance of up to 130 ft (40 m). In manual mode, the laser can be positioned at any desired angle and thanks to the included accessories, is ideal for a range of applications. The laser optics are optimally protected by the proctective housing. STABILA – simply work efficiently!
- GREENBEAM technology for extremely long and optimally visible laser lines
- Versatile use thanks to cross-lines and plumb points
- Powerful 12 V LI-POWER 2.0 Ah CAS rechargeable battery
- Effective optics protection thanks to the protective housing
- Can be positioned flexibly: 1/4″ thread, magnets, laser base and wall bracket
| Brand | Stabila |
|---|---|
| UPC | 089634035206 |
| Store Location (Lititz, PA) | Aisle 25, Section I3 |
| Manufacturer Part Number | 03520 |
| Type | Cross-Line Laser |
| Color | Green |
| Laser class | 2 |
| Output | < 1 mW |
| Laser wavelength | 510 - 530 nm |
| Self-levelling range ± | 5° |
| Levelling accuracy ± | 1/8 in @ 30 ft |
| Laser beam accuracy (up) ± | 1/8 in @ 30 ft |
| Laser beam accuracy (down) ± | 1/8 in @ 30 ft |
| Measuring range of visible line | 130 ft |
| Operating life | 20 h |
| Protection rating | IP 54 |
| Tripod connection | 1/4" |
