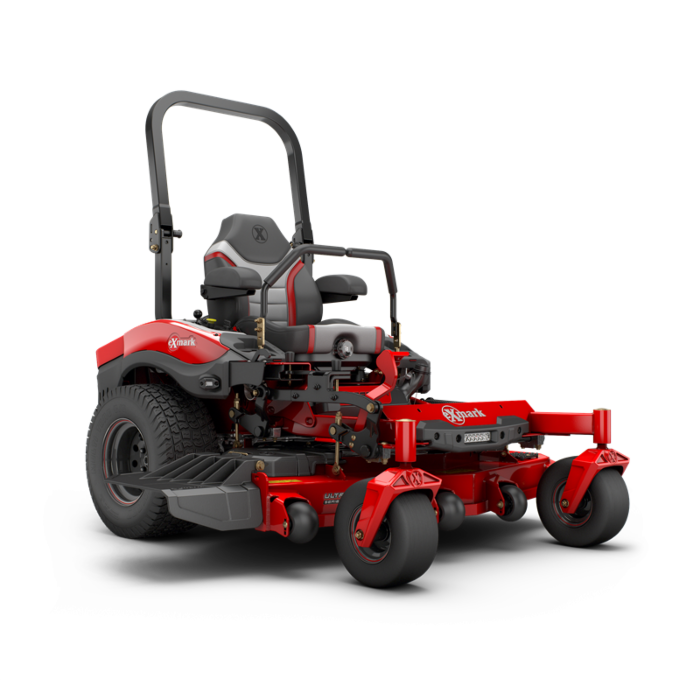

For more than 30 years, the Exmark Lazer Z has been the choice of more landscape professionals than any other zero-turn mower. For pros that demand the absolute best durability, productivity, cut quality, and innovation, the Lazer Z X-Series is the number one choice. The exclusive flow control baffles and tools-free deck rake adjustment deliver Exmark Signature cut quality and higher cutting speeds in any mowing conditions. Powered by a choice of state-of-the-art big block EFI V-Twin commercial engines from Kawasaki, the Lazer Z X-Series powers through the largest jobs with ease. Additionally, a long-travel full suspension operator seat features isolation bumpers to deliver a smoother ride for reduced operator fatigue. When you’re looking for the pinnacle of power, performance, cut quality, and durability in a commercial zero-turn mower, the Lazer Z X-Series is the obvious choice.
- The full-floating side-discharge deck design uses dual-capture anti-scalp rollers and double-row sealed bearings for ultimate durability
- Vanguard Oil Guard system increases mower uptime and decreases maintenance
- Adjust deck rake quickly and easily without tools to optimize cut quality and performance in a variety of turf types & conditions
- Rear engine guard removes with just four bolts
- Redesigned seat mount enables easier access to the engine and hydro drive components
- With a combination of increased power, faster control response, larger cutting decks and a high-capacity hydro drive system, Lazer Z X-Series delivers maximum productivity
- Ergonomically-advanced operator seat features long-travel suspension and exclusive iso-mount seat isolation
| Brand | Exmark |
|---|---|
| UPC | 193308241500 |
| Manufacturer Part Number | LRX820AKA606Q1 |
| Fuel Capacity | 12 gal |
| Max Speed | 11.5 mph |
| Cutting Height Range | 1"-5.5" |
| Coverage in Acres | 5+ |
| Acres Per Hour | 5.56 |
| Drive | Hydro-Drive |
| Wdith/Cutting Deck | 60" |
| Starter | Electric |
| Caster Forks | .50" thick caster yoke arms |
| Front Caster Tires | 13 x 6.5-6, smooth tread, semi-pneumatic |
| Parking Brake | Lever-actuated disc brake |
| Frame | Unibody, welded, 1.5"x3" tubular steel |
| Battery | 12V |
| Alternator | 30 Amp |
| Features | Engine hour meter, USB plug-in, LED lights, phone tray & cup holder |
| Engine Brand | Kawasaki® FX820EVO |
| Transmission Speeds | Infinitely Variable |
| Engine Model | FX820V |
| Engine Displacement | 822 |
| Engine Series | V-Twin |
| Fuel System | Electronic Fuel Injection (EFI) System Integrated Throttle Body, Electronic Governor & ECU |
| Speed | Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–7.0 mph (11.3 kmph) reverse |
| Engine Speed | 3,600 RPM |
| Deck Style | Floating Deck |
| Fuel Type | Gas EFI |
| Blade Tip Speed | Approximately 18,500 fpm |
| Blades | 3 Blades at 20.50" Length |
| Width | 72.8" |
| Height | 70.5" |
| Curb Weight | 1256 |
| Length | 84.1" |
| Fuel Indicator | Yes, Electronic Sender |
| Carb Compliant | Yes |
