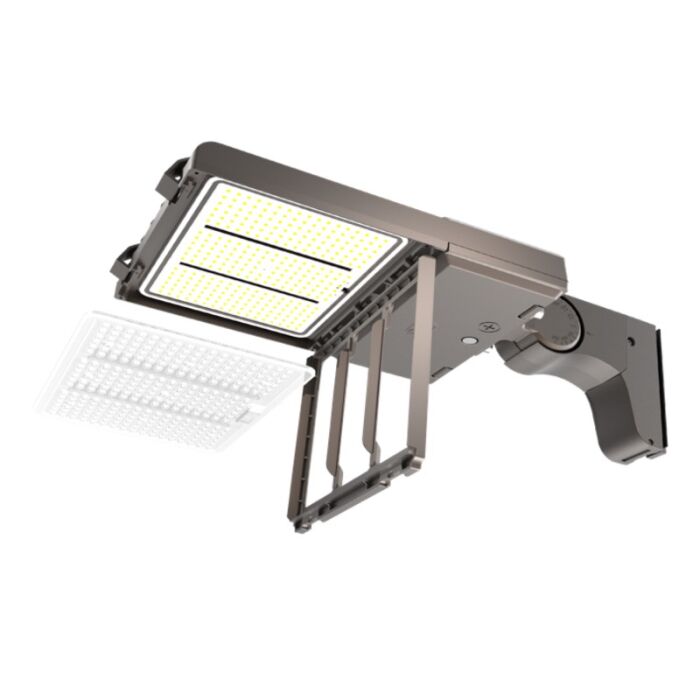

120-277 V 140 W LED LED Area Light

The Keystone XFit Opticswap LED area lights are an excellent choice to provide your large area exterior lighting application with long lasting, energy saving LED illumination. Each fixture is shipped with 3 different optical panels in Type III, Type IV and Type V beam spreads. Switching optics is an easy, tool-free process simply undo two clasps, change the optics and then relatch the clasps. This fixture is also wattage-selectable and CCT-selectable, allowing the installer to easily change the lumen output as well as the color temperature of the light.

• Keystone Power Select technology (140/100/70W)
• Keystone Color Select technology (3000/4000/5000K)
• Innovative optic swap capability under door frame and latch design for quick lens change
• Three lenses in the box Type III installed, Types IV and V included
• Type II lens sold separately
• Heavy duty die cast aluminum housing with ample heat sinking
• Low-profile design delivers high-performance illumination and improves application site aesthetics
• True U0 design for Dark Sky friendly performance that eliminates undesirable sky glow
• Integrated NEMA/ANSI C136.10 7-pin twist-lock receptacle with 3-pin photocell and shorting cap. Standard on all fixtures, simplifies ordering requirements for photo control needs
• Comes with a pre-installed adjustable pole mount kit for easy and quick mounting to square or round poles
• Keystone 0-10 V dimming driver
• Ambient operating temperature −40 deg C/−40 to 50 deg C/122 deg F
• UL Certified, IP65 rated
• Power factor > 0.95
• THD < 20%
• LED chip lifetime L70 > 100,000 hr at 25C deg /77 deg F ambient fixture temperature
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
