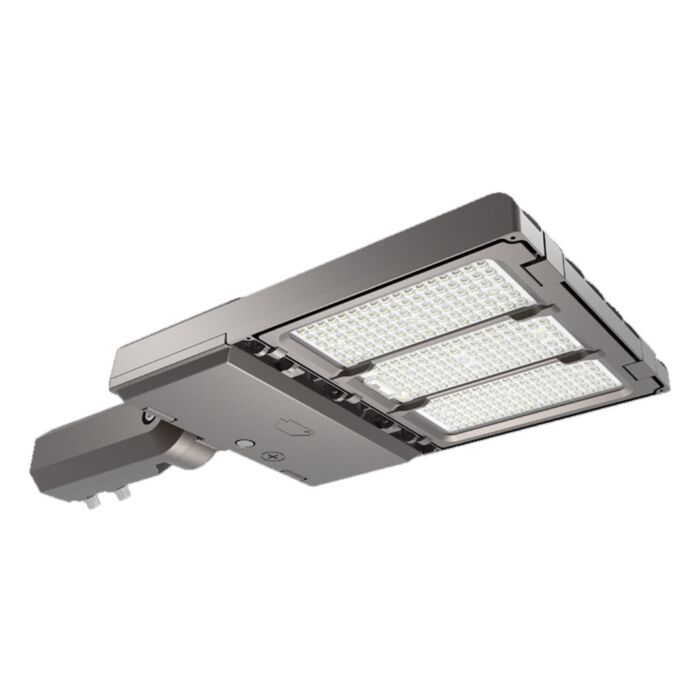

120-277 V 140 W LED LED Area Light

OpticSwap is a Keystone innovation that makes switching optics tool free undo two clasps, change out the optic lens and relatch the clasps. The fixture retains its weather-resistant IP65 rating. But it doesn’t only change the way optics are switched out. Combined with Keystone’s unique kitting approach, it also changes the market for area lights entirely. XFit Area Lights with OpticSwap stocking specials include everything in a single box fixture, three optics - Type III, IV and V — pre-installed mount, dusk-to-dawn photocell and shorting cap. That means distributors can put them on the shelf and contractors can buy them and go. No need for detailed custom orders, long wait times and callbacks. One fixture can do it all. Each fixture has a pre-installed lens and two alternates, so if optics need to be quickly swapped out, an installer can apply the right lens in seconds - instead of waiting to specify and order. Add to that our available SmartPort technology -contractor-friendly screw-in motion sensors that can be easily field-installed with no wiring - and XFit Area Lights with OpticSwap can take care of multiple needs in one fixture.

• Keystone Power Select technology (140/100/70W)
• Keystone Color Select technology (3000/4000/5000K)
• Innovative optic swap capability under door frame and latch design for quick lens change
• Three lenses in the box Type III installed, Types IV and V included
• Type II lens sold separately
• Heavy duty die cast aluminum housing with ample heat sinking
• Low-profile design delivers high-performance illumination and improves application site aesthetics
• True U0 design for Dark Sky friendly performance that eliminates undesirable sky glow
• Integrated NEMA/ANSI C136.10 7-pin twist-lock receptacle with 3-pin photocell and shorting cap. Standard on all fixtures, simplifies ordering requirements for photo control needs
• Comes with a pre-installed slip fitter mount kit for easy and quick mounting to square or round poles
• Keystone 0-10V dimming driver
• Ambient operating temperature −40 deg C/−40 to 50 deg C/122 deg F
• UL Certified, IP65 rated
• Power factor > 0.95
• THD < 20%
• LED chip lifetime L70 > 100,000 hrs @ 25C deg/77 deg F ambient fixture temperature
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
