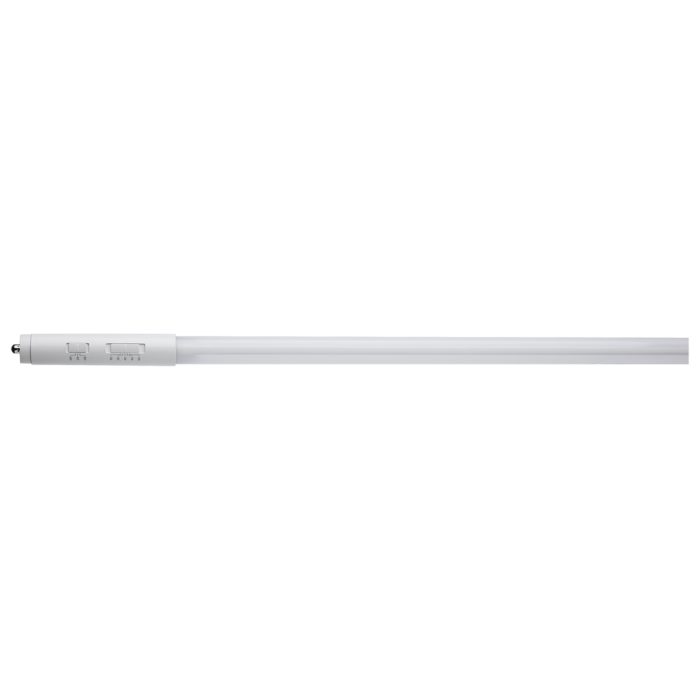

24/32/40 Wattage Selectable - 30/35/40/50/65K CCT Selectable - 8 Foot LED - Fa8 Base - 120-277 Volt - 2-pc
SKU: S11757
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$29.99
Features
Specifications
Downloads
SATCO NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of the S11757 T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections that securely interlock in the center for continuous illumination. Secure the connection point with the threaded collar, and C-clip to support the extended length from the center. This ballast bypass lamp is also field selectable, offering three wattage options and five CCT options in one convenient unit. In addition, the lamp is built for use in Fa8 lamp holders, and comes with R17d adapter caps, making it versatile for use in a variety of shunted and non-shunted lamp holders.
- Field Selectable: 3 Wattage and 5 CCT
- DLC Listed when used in Fa8 applications
- Optional R17d base caps included
- Includes C-clip for extra support where tubes connect
- PET Coated glass tube
- Compatible with optional 10W emergency driver
- Damp location rated
- Range Voltage 120V-277V
- 210 Degree Beam Angle
- Suitable for use in enclosed fixtures
- Ballast Bypass
- (1) Set R17d Endcaps
- (1) C-Clip
| Brand | Satco |
|---|---|
| UPC | 045923117572 |
| Store Location (Lititz, PA) | Aisle 10, Section A2 |
| Package Length (in) | 48.46" |
| Package Width (in) | 2.68" |
| Package Height (in) | 1.42" |
| Manufacturer Part Number | S11757 |
| Country of Origin | China |
| Length | 96 in |
| Weight | 0.98 lbs |
| Warranty | 5-Years |
| Amps | 0.200-0.087/0.267-0.116/0.333-0.144A |
| ANSI Base | Fa8 |
| Ballast Bypass Direct | Ballast Bypass |
| Beam Spread | 210 |
| CCT Selectable | Yes |
| CA Regulations | Exempt - Base Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| DLC Approved | Yes |
| DLC Classification | Standard |
| DLC ID | S-J3JX31 |
| DLC Primary Use | Internal Driver/Line Voltage (UL Type B) Lamps |
| Enclosure Rating | Not for use in fully enclosed vapor tight fixtures |
| FCC Compliant | Yes |
| BAA Compliant | No |
| Product Type | Linear |
| Flr Equiv | 59W/86W/96W |
| Avg Rated Hours | 50000 |
| Housing Color | White |
| Finish | White |
| Incandescent Equiv | 100W |
| Indoor Outdoor | Indoor |
| Lamp Base | Single Pin |
| Lamp Filament | LED |
| Lamp Shape | T8 |
| Lamp Ballast Type A/B/C | Type B |
| Lamp End Type | Double Ended |
| Lumens | 3500L/4400L/5500L |
| Material | Glass |
| MOD Decimal | 1 in. |
| MOL Decimal | 93.75 in. |
| NSF Approved | Yes |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Power Factor | 0.9 |
| Rated For Enclosed Fixture | Yes |
| RoHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified |
| Location Rating | Damp |
| Shatter Proof Type | PET Coated |
| Technology | LED |
| Temperature (CCT) | 3000K/3500K/4000K/5000K/6500K |
| THD | <25% |
| Three-Way | Yes |
| Volts | 120V-277V |
| Watts | 24W/32W/40W |
| Has Emergency Battery | No |
| Has Camera | No |
| IOT Enabled | No |
