LED Circline - 16 Watt - T9 - 3000K/4000K/6500K CCT Selectable - G10q Base - 120-277 Volt
SKU: S16511
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$29.99
Features
Specifications
Downloads

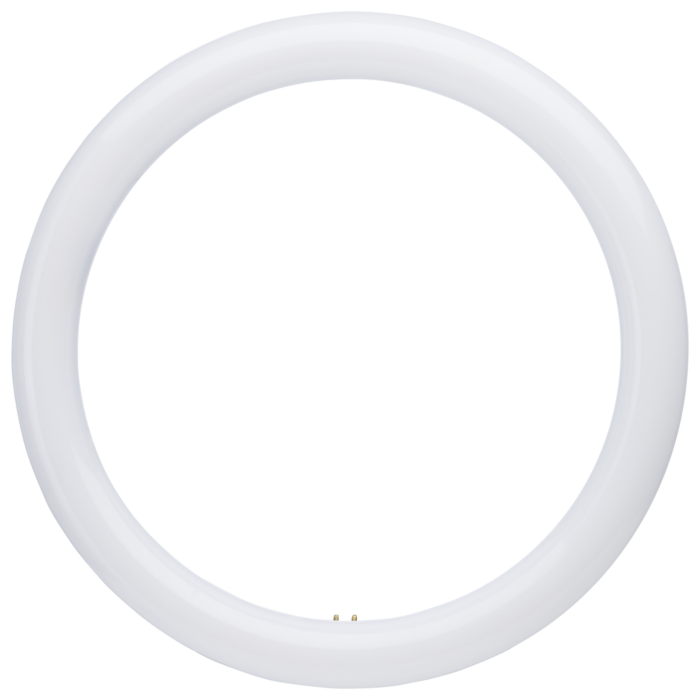

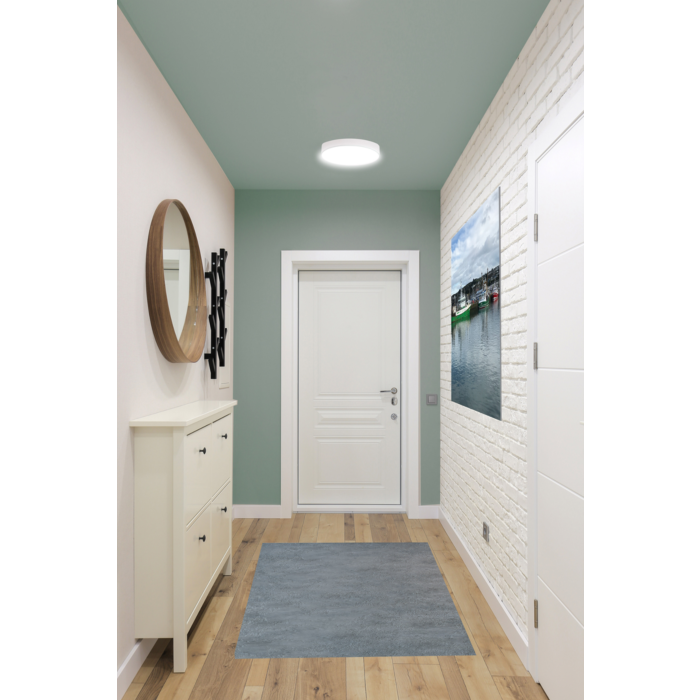

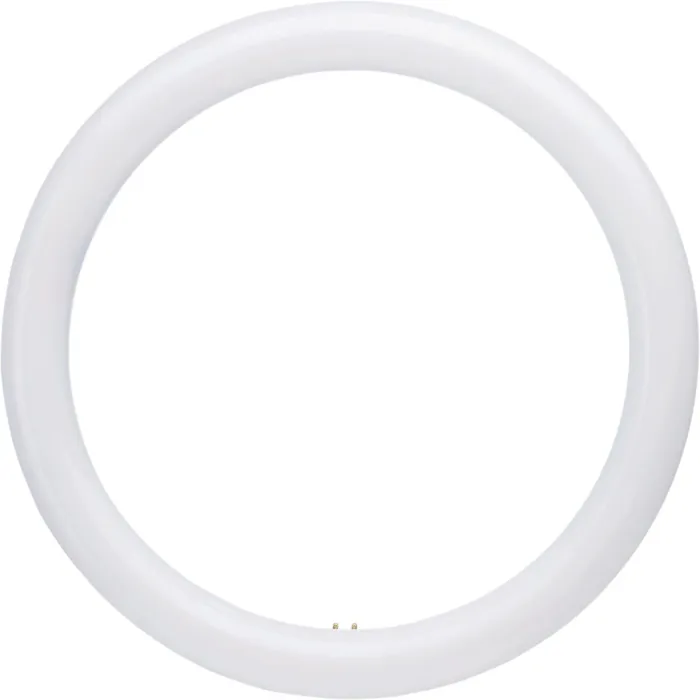

SATCO NUVO's LED 12-Inch Circline lamp is ideal for upgrading traditional fluorescent lighting to more energy efficient lighting in shallow, round ceiling and wall mounted fixtures. CCT selectable, choose from warm 3000K, neutral 4000K or choose 6500K to bring the daylight inside. Designed with versatility in mind, this circline lamp is dual mode for use with ballast or in ballast bypass configurations and is range voltage ready for use in 120V-277V applications. Refresh kitchens, halls and bedrooms in residential, multifamily and hospitality settings.
- 3 CCT Selectable
- Range Voltage 120V-277V
- Dual Mode Type A/B
- Damp Location Rated
- Rated for Enclosed Fixtures
- 50,000 Hour Functional Life
- 5 Year Warranty
- Non-Dimmable
- G10q Base
- 180 Degree Beam Angle
- Ballast required (Type A, Electronic only) or Ballast Bypass (Type B)
- Not for use in vapor tight fixtures.
| Brand | Satco |
|---|---|
| UPC | 045923165115 |
| Store Location (Lititz, PA) | Aisle 10, Section D4 |
| Package Length (in) | 1.38" |
| Package Width (in) | 12.01" |
| Package Height (in) | 12.01" |
| Manufacturer Part Number | S16511 |
| Country of Origin | Vietnam |
| Weight | 0.57 lbs |
| Warranty | 5-Years |
| Amps | 0.133-0.058A |
| ANSI Base | G10q |
| Ballast Bypass Direct | Dual |
| Beam Spread | 180 |
| CCT Selectable | Yes |
| CA Regulations | Exempt - Base Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| Dimmable | Non-Dimmable |
| DLC Approved | No |
| Enclosure Rating | Enclosed Rated Lamp |
| FCC Compliant | Yes |
| BAA Compliant | No |
| Product Type | Circline |
| Flr Equiv | 32W |
| Avg Rated Hours | 50000 |
| Housing Color | Frost |
| Finish | Frost |
| Incandescent Equiv | 50W |
| Indoor Outdoor | Indoor |
| Lamp Base | G10q (4-Pin) |
| Lamp Filament | LED |
| Lamp Shape | T9 |
| Lamp Ballast Type A/B/C | Type A/B |
| Lens Finish | Frost |
| Lumens | 1850L/2000L/1950L |
| Material | Polycarbonate (PC) |
| Minimum Compartment Size | Length 14.1 in. Width 14.1 in. Height: 3.5 in. |
| MOD Decimal | 1.2 in. |
| MOL Decimal | 11.82 in. |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Rated For Enclosed Fixture | Yes |
| RoHS Compliant | Yes |
| Safety Listing | cETLus - Classified |
| Location Rating | Damp |
| Surge Protection | Built-in surge protection - 2.5KV |
| Technology | LED |
| Temperature (CCT) | 3000K/4000K/6500K |
| THD | 25% |
| Three-Way | No |
| Volts | 120V-277V |
| Watts | 16W |
| Has Emergency Battery | No |
| Has Camera | No |
| IOT Enabled | No |
