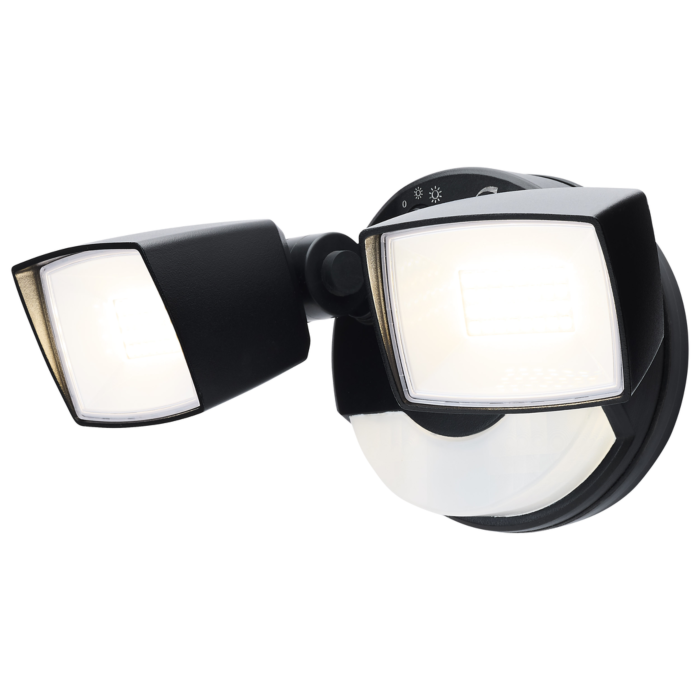

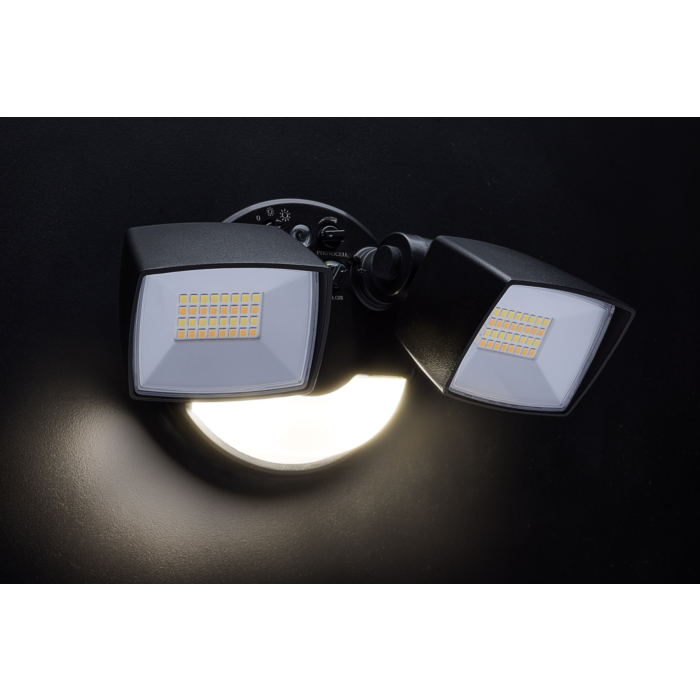

The SATCO NUVO 65-998 field-selectable dual-head LED security flood light sets a new standard for reliable and versatile safety lighting. Designed for both residential and commercial use, this fixture can be mounted on walls or eaves to effectively illuminate critical areas. Like our standard model, it includes an integrated dusk-to-dawn photocell with adjustable sensitivity, adjustable color temperature ranging from soft to natural white, and adjustable brightness between 17 and 25 watts. This full-feature model also offers a PIR motion sensor with an integrated Sentry light, providing a 180 degrees detection range and the option for manual override at the switch. The Sentry light allows adjustments to detection range, lux, and standby time. Available in a black finish with dual fully articulating heads, this fixture delivers comprehensive security lighting with style and efficiency.
- Fully Articulating Dual Heads
- 3 CCT Selectable
- Adjustable Photocell Sensitivity
- Adjustable Brightness Levels
- PIR Sensor With Sentry Light
- Tunable Motion Sensor Timeout
- Tunable Motion Sensor Detection Range
- Black, Die-Cast Aluminum Body and PC Lens
- 50,000 Hour Functional Life
- 5 Year Warranty
- Nightlight Watts - 3W
- Nightlight Lumens - 108L
- Nightlight Efficacy - 36.00 LPW
- Powder Coated
- Lead
- Mounts to Recessed or External Junction Boxes
| Brand | Satco |
|---|---|
| UPC | 045923659980 |
| Store Location (Lititz, PA) | Aisle 10, Section D4 |
| Package Length (in) | 6.69" |
| Package Width (in) | 4.53" |
| Package Height (in) | 4.53" |
| Manufacturer Part Number | 65-998 |
| Country of Origin | Vietnam |
| Width | 9.17 in |
| Height | 4.41 in |
| Weight | 1.33 lbs |
| Warranty | 5-Years |
| ADA Compliant | No |
| ANSI Base | Integrated |
| Beam Spread | 103 |
| Bulb Included | Integrated |
| CCT Selectable | Yes |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Dimmable | Non-Dimmable |
| Extends | 5.43 in. |
| FCC Compliant | Yes |
| Finish | Black |
| Finish Family | Black |
| Product Type | Security Lighting |
| Has Emergency Battery | No |
| HID Equiv | 70W |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 125W |
| Indoor Outdoor | Outdoor |
| IP Rating | IP65 |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lumens | 2190L-3352L |
| Material | Die-Cast Aluminum |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +50C (+122F) |
| Power Factor | >0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| Location Rating | Wet |
| Surge Protection | Built-in surge protection - 2KV |
| Technology | LED |
| Temperature (CCT) | 3000K/4000K/5000K |
| THD | <20% |
| Volts | 120V |
| Watts | 17W/25W |
| Wattage Selectable | Yes |
| Voltage Text | AC Only |
| Has Camera | No |
| IOT Enabled | No |
| Sensor Type | PIR |
| Photocell | Has Photocell |
| Title 20 | Exempt |
| T24 Compliant | No |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
