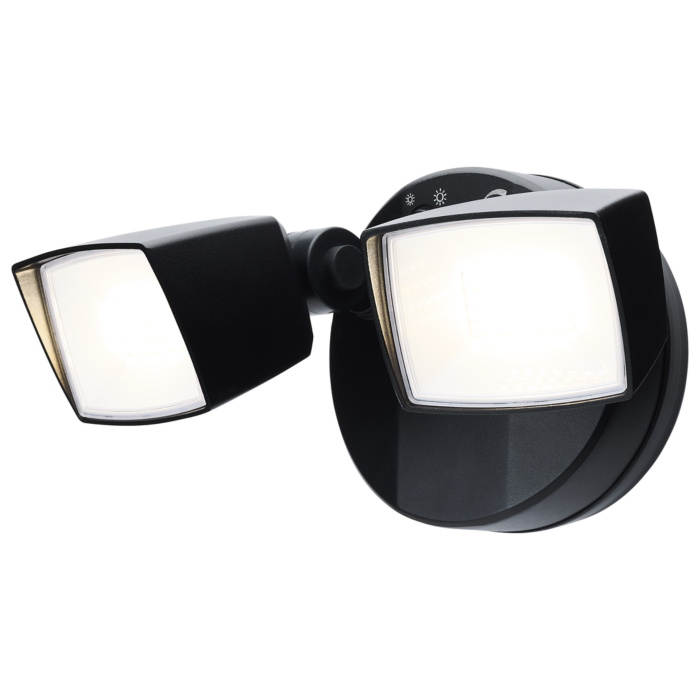

The SATCO NUVO 65-996 field-selectable dual-head LED security flood light sets a new standard for reliable and versatile safety lighting. Ideal for both residential and commercial use, this fixture can be easily mounted on walls or eaves to illuminate critical areas. It features an integrated dusk-to-dawn photocell with adjustable sensitivity, allowing users to customize when the light turns on and off. Additionally, users can adjust the color temperature from soft to natural white and set the brightness between 17 and 25 watts. Available in a black finish with dual fully articulating heads, this fixture provides comprehensive security lighting with style and efficiency.
- Mounts to Recessed or External Junction Boxes
- Fully Articulating Dual Heads
- 3 CCT Selectable
- Adjustable Photocell Sensitivity
- Adjustable Brightness Levels
- Black, Die-Cast Aluminum Body and PC Lens
- Wet Location Rated
- 50,000 Hour Functional Life
- 5 Year Warranty
- Powder Coated
- Lead
| Brand | Satco |
|---|---|
| UPC | 045923650871 |
| Store Location (Lititz, PA) | Aisle 10, Section D4 |
| Package Length (in) | 6.69" |
| Package Width (in) | 4.53" |
| Package Height (in) | 4.53" |
| Manufacturer Part Number | 65-996 |
| Country of Origin | Vietnam |
| Width | 9.17 in |
| Height | 4.41 in |
| Weight | 1.25 lbs |
| Warranty | 5-Years |
| ADA Compliant | No |
| ANSI Base | Integrated |
| Beam Spread | 103 |
| Bulb Included | Integrated |
| CCT Selectable | Yes |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Dimmable | Non-Dimmable |
| Extends | 5.43 in. |
| FCC Compliant | Yes |
| Finish | Black |
| Finish Family | Black |
| Product Type | Security Lighting |
| Has Emergency Battery | No |
| HID Equiv | 70W |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 125W |
| Indoor Outdoor | Outdoor |
| IP Rating | IP65 |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lumens | 2190L-3352L |
| Material | Die-Cast Aluminum |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +50C (+122F) |
| Power Factor | >0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| Location Rating | Wet |
| Surge Protection | Built-in surge protection - 2KV |
| Technology | LED |
| Temperature (CCT) | 3000K/4000K/5000K |
| THD | <20% |
| Volts | 120V |
| Watts | 17W/25W |
| Wattage Selectable | Yes |
| Voltage Text | AC Only |
| Has Camera | No |
| IOT Enabled | No |
| Photocell | Has Photocell |
| Title 20 | Exempt |
| T24 Compliant | No |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
